What is DLO cable?

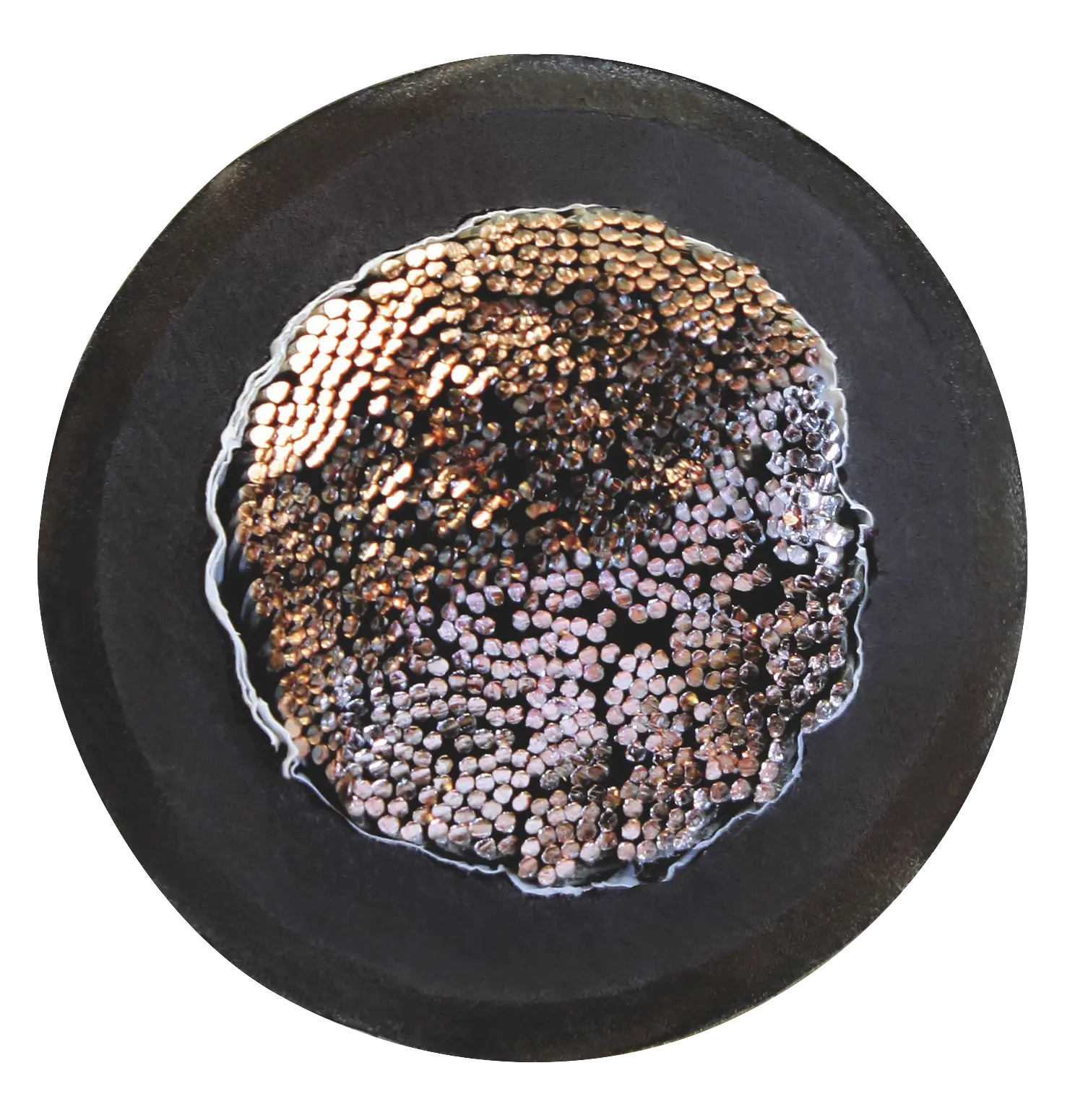

Single conductor 2000 V diesel locomotive cable: tinned copper per AAR 589, EPDM insulation, heavy-duty CPE jacket. UL Listed as RHH/RHW-2, file E18321. CSA RW90 1 kV. −40°F to 194°F (−40°C to 90°C), wet or dry. 10 AWG to 777.7 MCM. Cable tray rated at 1/0 and larger. Also used in mining and data center UPS rooms. Made in the USA.
- Tinned copper per AAR 589. Finely stranded, annealed. A polyester tape under the insulation strips clean.
- 2000 V as RHH/RHW-2. UL 44, file E18321. 1000 V as CSA RW90. Cable tray rated at 1/0 and larger.
- −40°F to 194°F, wet or dry. EPDM insulation, heavy-duty CPE jacket. Sunlight, oil, and abrasion resistant.
Applications
Diesel-electric locomotives, mining, telecom power, oil and gas rigs, shipyards, motor leads, and flexible power in conduit or raceway. Also UPS battery strings, switchgear interconnect, and generator hookups.
2000 V tinned copper, cable tray rated at 1/0 and larger. 4/0 DLO carries 260 A in raceway and 405 A in free air.
Single conductor DLO in conduit, ducts, troughs, and trays. Polar Wire terminates it with compression lugs, on quote.
Heavy-duty CPE over EPDM. MSHA P-136-29. Specified for mining and earth-moving equipment.
Diesel locomotive cable for traction motors, telecom power, shipyard power, and motor leads.
DLO for UPS, switchgear, and generators
2000 V RHH/RHW-2. Flexible tinned copper. Cable tray rated at 1/0 and larger. Use it for UPS battery strings, switchgear interconnect, and generator hookups.
UPS battery strings
4/0 DLO: 260 A in raceway, 405 A in free air. 535.3 MCM: 445 A and 728 A. Short, heavy runs, terminated in bolted lugs.
Switchgear interconnect
2/0 DLO: 195 A in raceway, 300 A in free air. 1/0 and larger are cable tray rated. Conduit, ducts, troughs, and trays.
Generator hookups
2000 V RHH/RHW-2 motor-lead cable on a CPE jacket. Quoted by the foot, or built as a terminated assembly.
DLO cable sizes and ampacity
Seventeen sizes, 10 AWG through 777.7 MCM. The part number is the size: DLO-2/0 is 2/0 AWG, DLO-4/0 is 4/0, DLO-313 is 313.3 MCM, DLO-535 is 535.3 MCM. Ampacity column (1) is three current-carrying conductors in raceway, per NEC Table 310.16. Column (2) is a single conductor in free air, per NEC Table 310.17. 2/0 is 195 A / 300 A. 4/0 is 260 A / 405 A.
Size
Units
Columns
View
2000 V as UL RHH/RHW-2, 1000 V as CSA RW90
| Insulation | Jacket | Quote | ||||||
|---|---|---|---|---|---|---|---|---|
| DLO-10 | 10 | 27/24 | .045" | 0.26" | 40 | 55 | Black | Quote |
| DLO-8 | 8 | 37/24 | .060" | 0.34" | 55 | 80 | Black | Quote |
| DLO-6 | 6 | 61/24 | .060" | 0.40" | 75 | 105 | Black | Quote |
| DLO-4 | 4 | 105/24 | .060" | 0.46" | 95 | 140 | Black | Quote |
| DLO-2 | 2 | 154/24 | .060" | 0.52" | 130 | 190 | Black | Quote |
| DLO-1 | 1 | 224/24 | .080" | 0.65" | 150 | 220 | Black | Quote |
| DLO-1/0 | 1/0 | 280/24 | .080" | 0.69" | 170 | 260 | Black | Quote |
| DLO-2/0 | 2/0 | 329/24 | .080" | 0.73" | 195 | 300 | Black | Quote |
| DLO-3/0 | 3/0 | n/a | .080" | 0.81" | 225 | 350 | Black | Quote |
| DLO-4/0 | 4/0 | 551/24 | .080" | 0.87" | 260 | 405 | Black | Quote |
| DLO-262 | 262.6 | 646/24 | .095" | 1.00" | 296 | 467 | Black | Quote |
| DLO-313 | 313.3 | 777/24 | .095" | 1.06" | 326 | 522 | Black | Quote |
| DLO-373 | 373.7 | 925/24 | .095" | 1.10" | 362 | n/a | Black | Quote |
| DLO-444 | 444.4 | 1110/24 | .095" | 1.23" | 400 | 652 | Black | Quote |
| DLO-535 | 535.3 | 1332/24 | .120" | 1.34" | 445 | 728 | Black | Quote |
| DLO-646 | 646.4 | 1600/24 | .120" | 1.45" | 493 | 815 | Black | Quote |
| DLO-777 | 777.7 | 1924/24 | .120" | 1.50" | n/a | 904 | Black | Quote |
- AWG / MCM
- 8
- Amps (1)
- 55
- Amps (2)
- 80
- Stranding
- 37/24
- Nominal OD
- 0.34"
- AWG / MCM
- 6
- Amps (1)
- 75
- Amps (2)
- 105
- Stranding
- 61/24
- Nominal OD
- 0.40"
- AWG / MCM
- 4
- Amps (1)
- 95
- Amps (2)
- 140
- Stranding
- 105/24
- Nominal OD
- 0.46"
- AWG / MCM
- 2
- Amps (1)
- 130
- Amps (2)
- 190
- Stranding
- 154/24
- Nominal OD
- 0.52"
- AWG / MCM
- 1
- Amps (1)
- 150
- Amps (2)
- 220
- Stranding
- 224/24
- Nominal OD
- 0.65"
- AWG / MCM
- 1/0
- Amps (1)
- 170
- Amps (2)
- 260
- Stranding
- 280/24
- Nominal OD
- 0.69"
- AWG / MCM
- 2/0
- Amps (1)
- 195
- Amps (2)
- 300
- Stranding
- 329/24
- Nominal OD
- 0.73"
- AWG / MCM
- 3/0
- Amps (1)
- 225
- Amps (2)
- 350
- Stranding
- n/a
- Nominal OD
- 0.81"
- AWG / MCM
- 4/0
- Amps (1)
- 260
- Amps (2)
- 405
- Stranding
- 551/24
- Nominal OD
- 0.87"
- AWG / MCM
- 262.6
- Amps (1)
- 296
- Amps (2)
- 467
- Stranding
- 646/24
- Nominal OD
- 1.00"
- AWG / MCM
- 313.3
- Amps (1)
- 326
- Amps (2)
- 522
- Stranding
- 777/24
- Nominal OD
- 1.06"
- AWG / MCM
- 373.7
- Amps (1)
- 362
- Amps (2)
- n/a
- Stranding
- 925/24
- Nominal OD
- 1.10"
- AWG / MCM
- 444.4
- Amps (1)
- 400
- Amps (2)
- 652
- Stranding
- 1110/24
- Nominal OD
- 1.23"
- AWG / MCM
- 535.3
- Amps (1)
- 445
- Amps (2)
- 728
- Stranding
- 1332/24
- Nominal OD
- 1.34"
- AWG / MCM
- 646.4
- Amps (1)
- 493
- Amps (2)
- 815
- Stranding
- 1600/24
- Nominal OD
- 1.45"
- AWG / MCM
- 777.7
- Amps (1)
- n/a
- Amps (2)
- 904
- Stranding
- 1924/24
- Nominal OD
- 1.50"
* (1) Ampacities based on 90°C conductor and 30°C ambient, NEC Table 310.16, not more than three current-carrying conductors in raceway, cable or earth. * (2) Ampacities based on a single conductor in free air, NEC Table 310.17. Jacket is black CPE.
Finished leads. Lugs to 1000 MCM.
Quoted on a reel, or cut and terminated. Compression lugs and splices run to 1000 MCM, which covers every size in the table.
Approvals and ratings

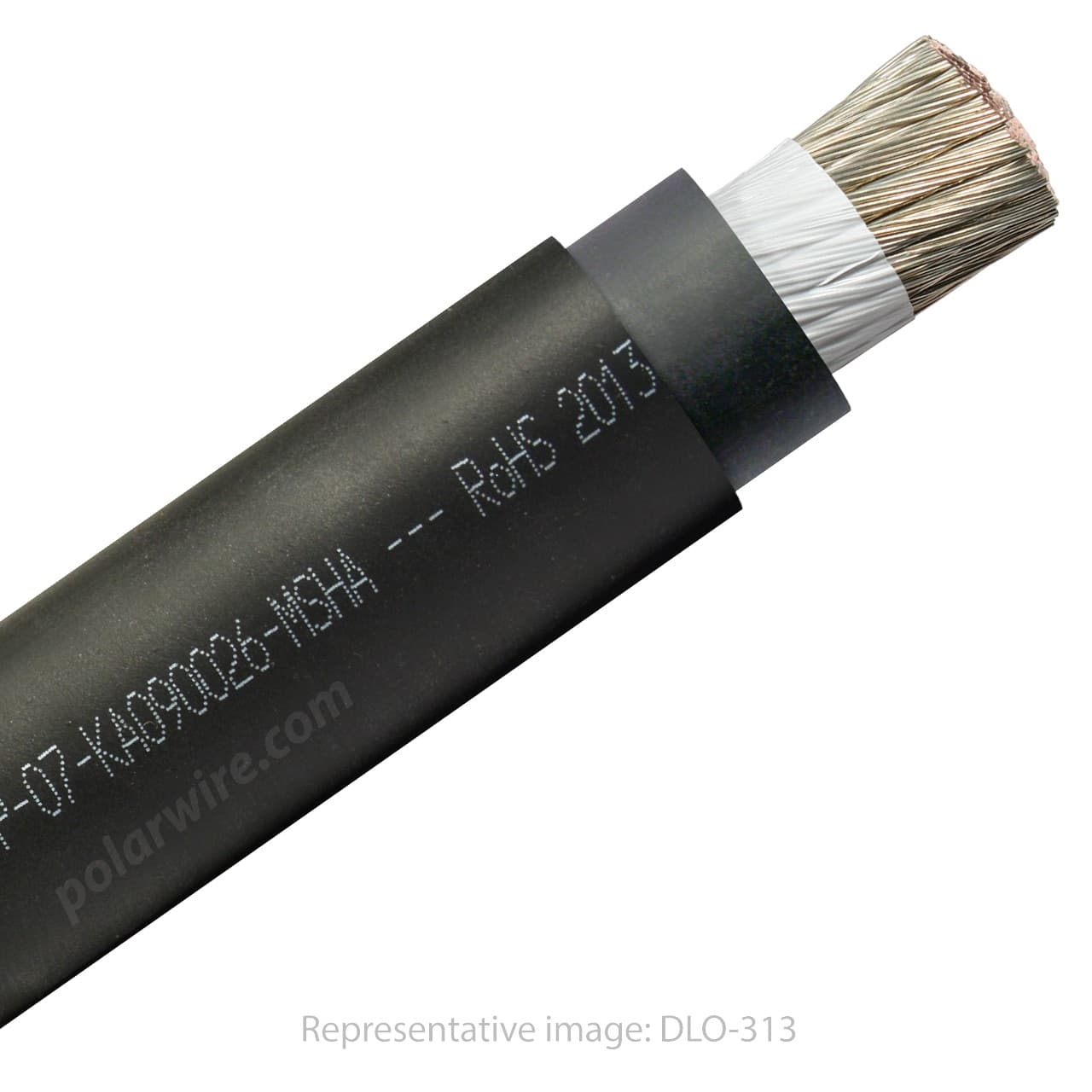

UL file E18321. CSA C22.2 No.38. MSHA P-136-29. Sample jacket print below.
UL Listed RHH/RHW-2
File E18321. 2000 V
UL 44. Cable tray rated at 1/0 and larger.
CSA RW90 1 kV
CSA Certified as Type RW90 1 kV per C22.2 No.38. FT-4, VW-1.
MSHA P-136-29
MSHA accepted. Mining and earth-moving equipment.
−40°F to 194°F
−40°C to 90°C, wet or dry
Maximum continuous conductor temperature 194°F dry, 167°F wet.
Cable tray, 1/0 and up
CT rated 1/0 and larger. SUN RES. For CT use on the jacket print.
Made in the USA
Polar Wire is a supplier of specialty DLO constructions manufactured in the United States.
Typical legend printed on the cable
313.1 KCMIL (152.0mm2) TYPE RHH OR RHW-2 2KV (-40C) PR II SUN RES FOR CT USE FT4/IEEE 1202 (UL) E18321. CSA LL825 RW90 300 KCMIL EP 1KV (-40C) EP/CPE TC FT4. EPR/CPE 2KV DIESEL LOCOMOTIVE CABLE P-07-KA090026-MSHA. RoHS 2013 2325 350 12114FT.
DLO spec sheet and documents
Spec sheet, Class K stranding, and lug pages. If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.
Frequently asked questions
If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.
What is DLO cable?
A single conductor 2000 V diesel locomotive cable: finely stranded tinned copper per AAR 589, EPDM insulation, heavy-duty CPE jacket that resists sunlight, oil and abrasion. A polyester tape between the conductor and the insulation is what lets it be stripped cleanly. UL RHH/RHW-2 and CSA RW90. 10 AWG to 777.7 MCM. Also used in mining and data center UPS rooms.
Can DLO cable go in conduit?
Yes. DLO is suitable for wet or dry areas, conduit, ducts, troughs or trays. Sizes 1/0 and larger are cable tray rated. Maximum continuous conductor temperature is 90°C dry and 75°C wet.
Is DLO the same as railroad cable or locomotive wire?
Yes. DLO is diesel locomotive cable, also searched as locomotive wire and locomotive cable. Polar Wire carries it for locomotives, rail and transit, and mining. Other railroad cables exist for other jobs.
What is the ampacity of DLO cable?
It depends on how the cable is installed. Column (1) is three current-carrying conductors in raceway, cable or earth per NEC Table 310.16, and runs from 40 amps at 10 AWG to 493 amps at 646.4 MCM. Column (2) is a single conductor in free air per NEC Table 310.17, and runs from 55 amps at 10 AWG to 904 amps at 777.7 MCM. Both assume a 90 degree C conductor and a 30 degree C ambient.
What sizes does DLO cable come in?
Seventeen sizes, 10 AWG through 777.7 MCM: 10, 8, 6, 4, 2 and 1 AWG, then 1/0, 2/0, 3/0 and 4/0, then 262.6, 313.3, 373.7, 444.4, 535.3, 646.4 and 777.7 MCM. Sizes 1/0 and larger are cable tray rated. The part number is the size: DLO-2/0 is 2/0 AWG, DLO-535 is 535.3 MCM. Stranding, insulation thickness and outside diameter for every one of them are in the table on this page.
Where can I buy DLO cable?
From Polar Wire, on quote. Send us the size, the length and whether you want it on a reel or cut and terminated, and we will price it. We also build finished assemblies in DLO.
What are DLO cable specifications?
The table on this page is the spec. 2 kV as UL RHH/RHW-2 (file E18321), 1 kV as CSA RW90, tinned copper per AAR 589, EPDM insulation, CPE jacket, 10 AWG to 777.7 MCM. MSHA P-136-29. FT-4 and VW-1 flame tests. Cable tray rated at 1/0 and larger. Temperature 194°F dry / 167°F wet (90°C dry, 75°C wet).
How much does DLO cable cost?
DLO is quote only. It is not on the online store. Typical price is $4 to $32 per foot, depending on gauge. Smaller sizes sit near the low end, 777.7 MCM at the high end. Tell us the size, length, and whether you want it on a reel or cut and terminated and we will quote it.
Quote DLO cable
Polar Wire is a diesel locomotive cable supplier. Quote only. Send the size, the length, and whether you want it on a reel or cut and terminated.
