Premium Trailer Cable
Trailer cable. Tinned trailer wire.
Twin, 4, and 7 conductor. 600 V.Trailer cable. Tinned trailer wire
Approvals and origin
Type TC 600 V−67°F to 221°FSUN RESExceeds SAE
At a glance
- TwinTwin cable
- 18 AWG to 10 AWG
- MultiMulti-conductor
- 4 and 7 conductor
- TemperatureTemperature
- −67°F to 221°F
- VoltageVoltage
- 600 V
- ConductorConductor
- Class K copper, tinned*
- JacketJacket
- Arctic Ultraflex Blue TPE
* AUF-TC1014-7 is bare copper. Every other stocked SKU is tinned.

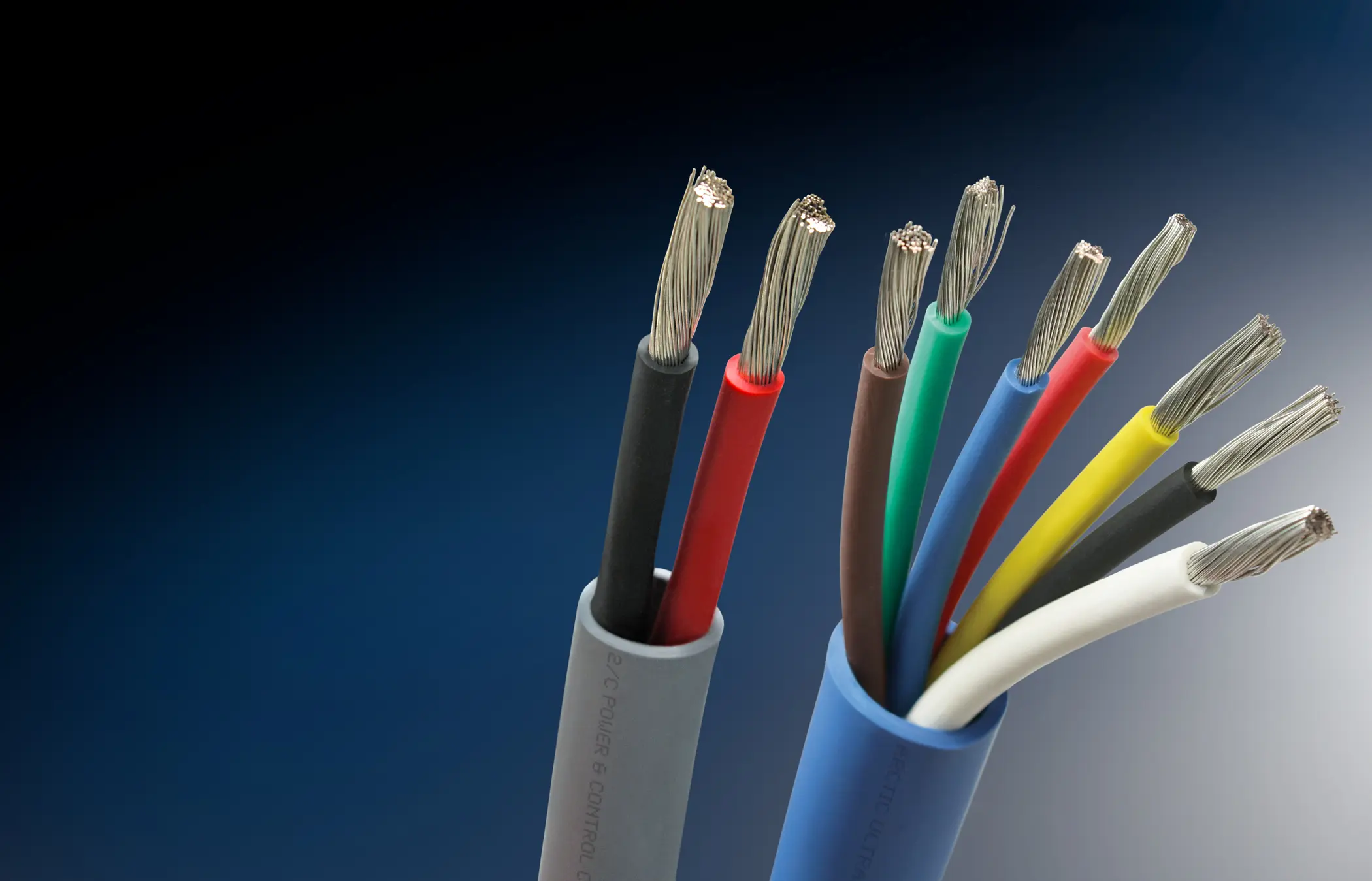

DOT color coded trailer cable
Polar Wire Premium Trailer Cable uses the same Arctic Ultraflex Blue TPE jacket as the single conductor wire. Class K 100% copper, tinned except AUF-TC1014-7. Twin 18 AWG to 10 AWG, plus 4 and 7 conductor. 600 V. Flexible from −67°F to 221°F (−55°C to 105°C). Sold by the foot. Manufactured in the United States.
- Class K 100% copper. Fine 30 AWG strands. Tinned, except AUF-TC1014-7, which is bare copper.
- Twin and multi-conductor. Gray twin 18 to 10 AWG. Blue 4 and 7 conductor. DOT color coding.
- 600 V. Flexible −67°F to 221°F. Type TC, sunlight resistant. Exceeds SAE trailer cable standards.
Applications
Trailer wiring, DC power, vehicle upfitting, solar trackers, and other non-UL power, control, and signal runs.

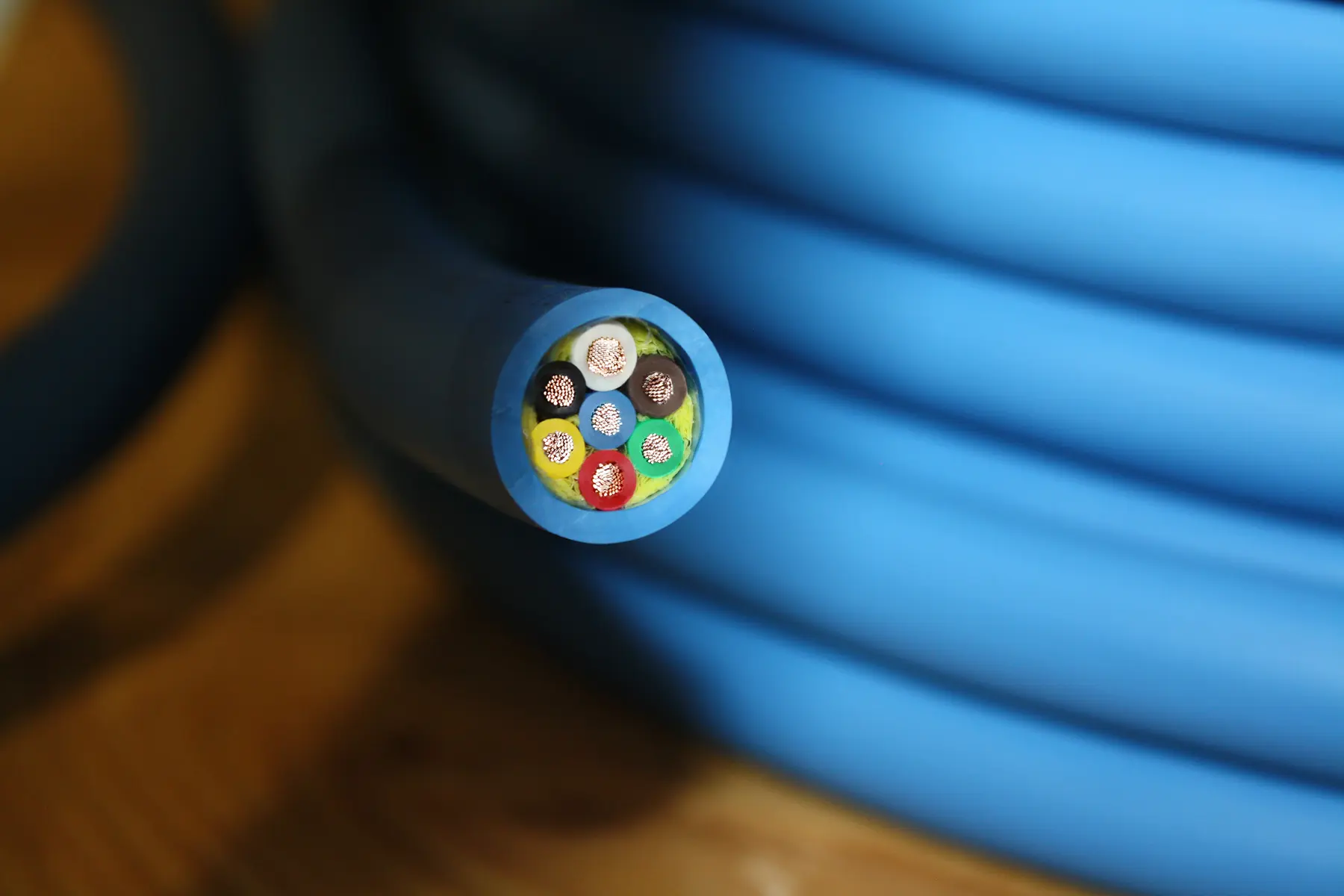

DOT color coded 4 and 7 conductor cable. Blue Arctic Ultraflex Blue TPE jacket.

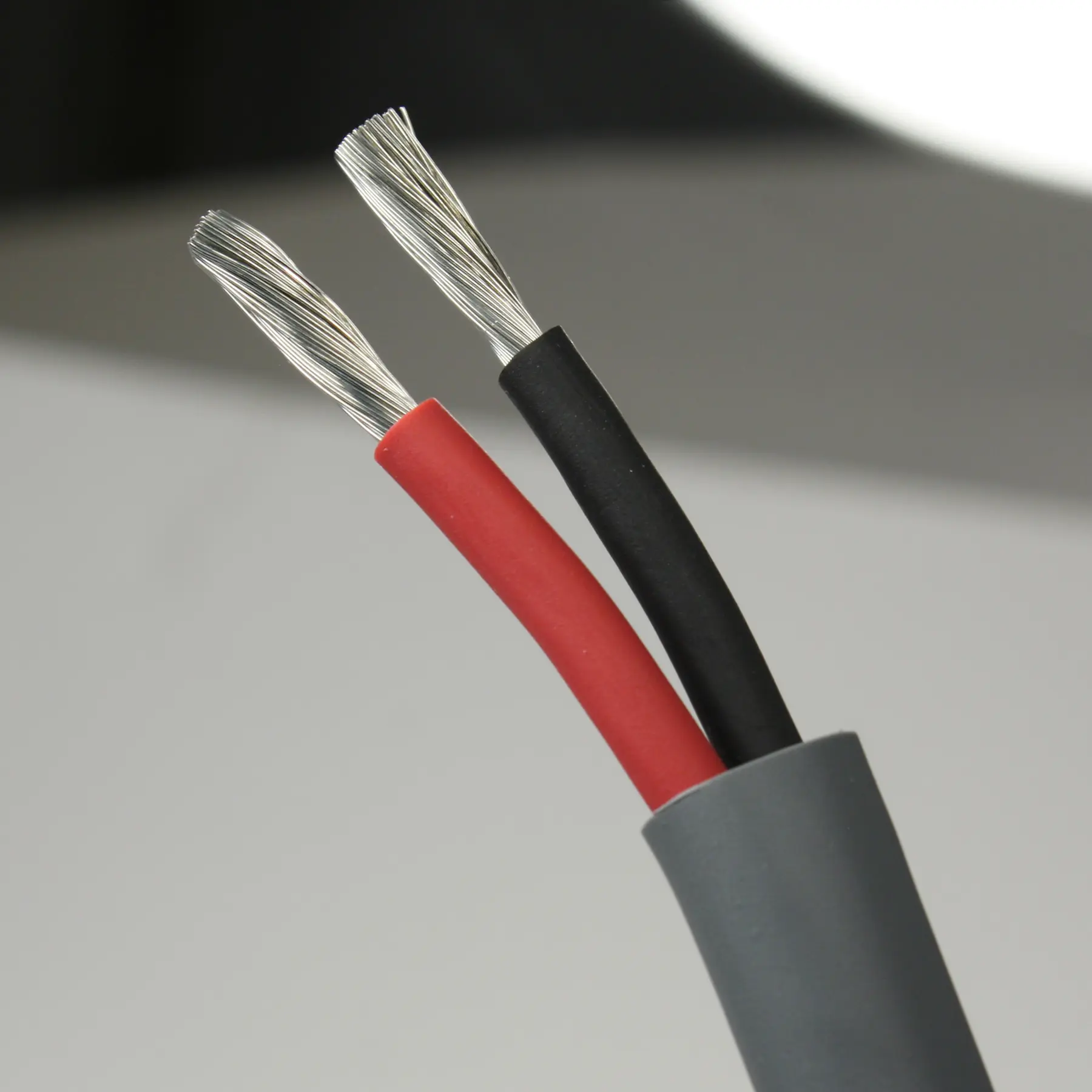

Gray jacket. 18 AWG to 10 AWG. DC power, lighting, and control pairs.

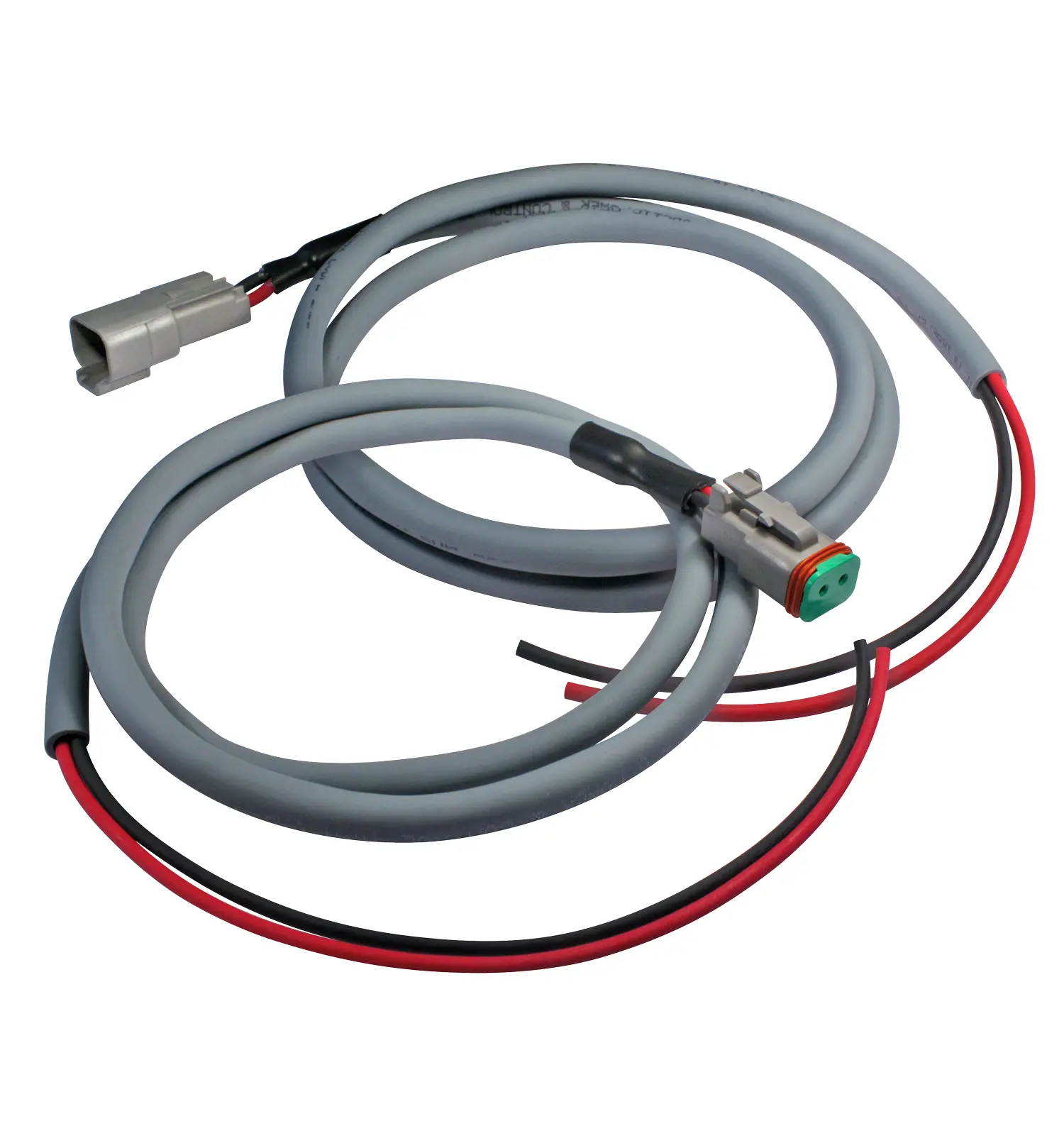

Flexible enough for harness work, implements, and mobile equipment.
Trackers, robotics, and other non-UL power, control, and signal runs.
Specifications, every size
Gauge and AWG are the same measurement. Twin 12 AWG is two 12 AWG conductors, red and black. Multi-conductor SKUs mix sizes.
Construction
Columns
View
Multi-conductor trailer cable
| Copper | Inner colors | Buy | ||||
|---|---|---|---|---|---|---|
| 10 AWG / 12 AWG | AUF-TC1012-7 | 7 | 105/30 / 65/30 | Tinned | WhiteBlackRedBlueGreenYellowBrown | Shop |
| 10 AWG / 12 AWG / 14 AWG | AUF-TC101214-7 | 7 | 105/30 / 65/30 / 41/30 | Tinned | WhiteBlackRedBlueGreenYellowBrown | Shop |
| 10 AWG / 14 AWG | AUF-TC1014-7 | 7 | 105/30 / 41/30 | Bare copper | WhiteBlackRedBlueGreenYellowBrown | Shop |
| 12 AWG / 14 AWG | AUF-TC1214-7 | 7 | 65/30 / 41/30 | Tinned | WhiteBlackRedBlueGreenYellowBrown | Shop |
| 14 AWG | AUF-TC144 | 4 | 41/30 | Tinned | WhiteGreenYellowBrown | Shop |
- Size
- 10 AWG / 12 AWG / 14 AWG
- Conductors
- 7
- Stranding
- 105/30 / 65/30 / 41/30
- Copper
- Tinned
- Size
- 10 AWG / 14 AWG
- Conductors
- 7
- Stranding
- 105/30 / 41/30
- Copper
- Bare copper
- Size
- 12 AWG / 14 AWG
- Conductors
- 7
- Stranding
- 65/30 / 41/30
- Copper
- Tinned
- Size
- 14 AWG
- Conductors
- 4
- Stranding
- 41/30
- Copper
- Tinned
Twin trailer cable
- Size
- 18 AWG
- Conductors
- 2
- Stranding
- 16/30
- Copper
- Tinned
- Size
- 16 AWG
- Conductors
- 2
- Stranding
- 26/30
- Copper
- Tinned
- Size
- 14 AWG
- Conductors
- 2
- Stranding
- 41/30
- Copper
- Tinned
- Size
- 12 AWG
- Conductors
- 2
- Stranding
- 65/30
- Copper
- Tinned
- Size
- 10 AWG
- Conductors
- 2
- Stranding
- 105/30
- Copper
- Tinned

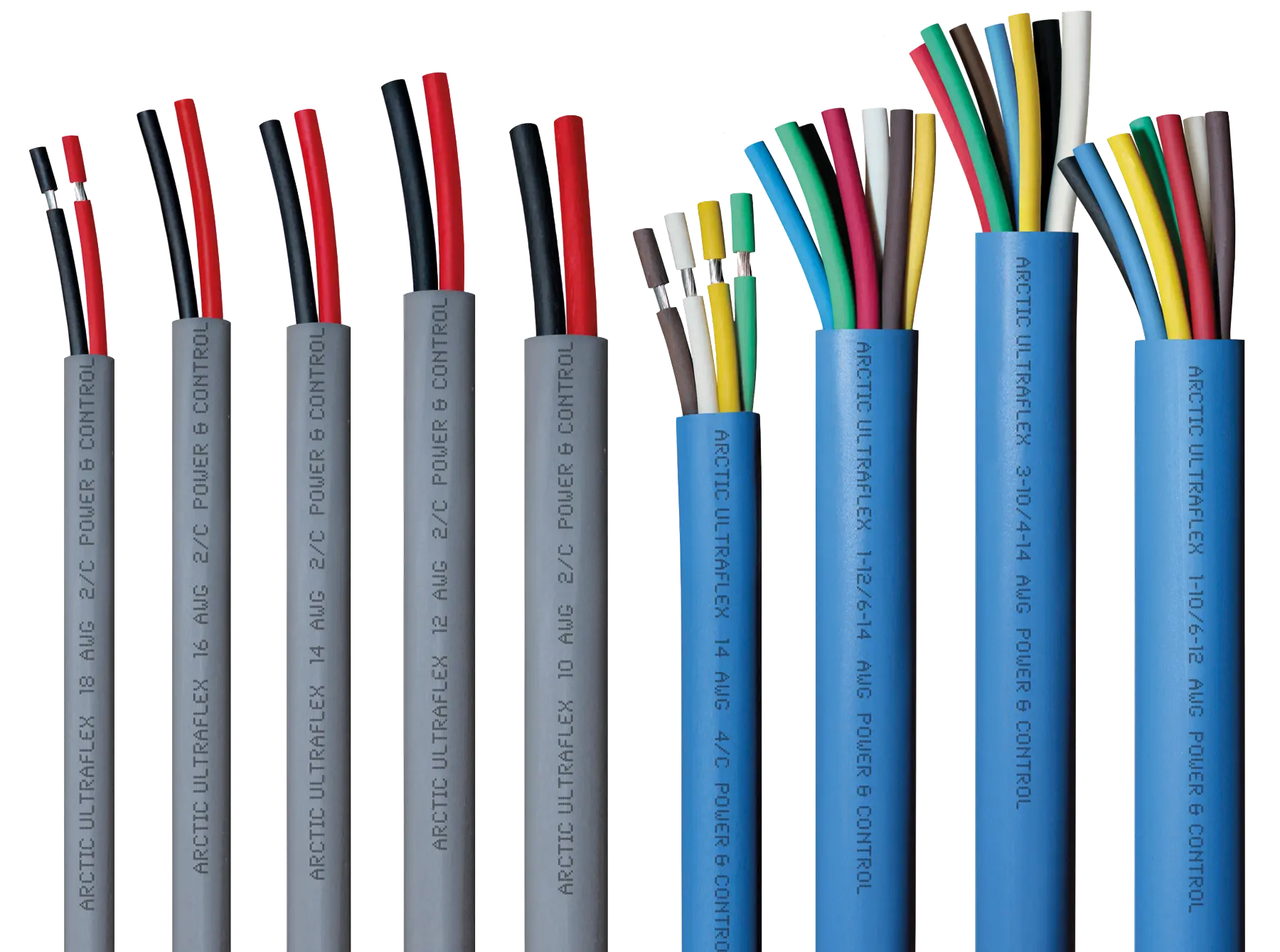

Multi-conductor jackets are blue. Twin jackets are gray. Inner colors follow the automotive Department of Transportation standard.
Color options
Outer jacket is Arctic Ultraflex Blue TPE: blue on multi-conductor, gray on twin.
- Blue TPE jacketMulti-conductor
- Gray TPE jacketTwin cable
- DOT inner colorsWhite, black, red, blue, green, yellow, brown
- Red / blackTwin conductors
Flexible to −67°F. 600 V Type TC.
600 V Type TC. Arctic Ultraflex Blue TPE. Flexible −67°F to 221°F. Exceeds SAE.
Approvals and ratings
Type TC 600 V, sunlight resistant. Sample jacket print below. This cable is not UL listed.
600 V Type TC
Power and control tray cable
Non-UL power, control, and signal applications. Sold by the foot.
−67°F to 221°F
−55°C to 105°C
Stays flexible in arctic cold. Same Arctic Ultraflex Blue TPE as the single conductor wire.
SUN RES
Sunlight resistant jacket print. Resists oil, gas, salt, water, acids, and abrasion.
Exceeds SAE
Built past SAE trailer cable standards. Inner colors follow the automotive DOT convention.
Class K copper
100% copper, 30 AWG strands. Tinned, except AUF-TC1014-7.
Made in the USA
Manufactured exclusively by Polar Wire Products in the United States.
Typical legend printed on the cable
ARCTIC ULTRAFLEX 1-12/6-14 AWG POWER & CONTROL TRAY CABLE TYPE TC 600V SUN RES
Documents and resources
Spec sheet and Class K stranding. If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.
Frequently asked questions
If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.
What is trailer cable?
Trailer cable is multi-conductor cord for trailer wiring: tinned Class K copper inside an Arctic Ultraflex Blue TPE jacket, with DOT standard conductor colors. Polar Wire stocks it as twin (18 to 10 AWG) and as 4 and 7 conductor. Rated 600 V, −55°C to 105°C (−67°F to 221°F). Used for trailer wiring, DC power, vehicle upfitting, solar trackers, and robotics.
What is tinned trailer wire?
Tinned trailer wire is trailer cable with tinned Class K copper under the Arctic Ultraflex Blue TPE jacket. Tinning is the corrosion layer. One stocked SKU is bare: AUF-TC1014-7. The rest of the line is tinned.
Do you have 5 conductor or 7 conductor trailer wire?
7 conductor, yes. 5 conductor, no. Polar Wire stocks twin (2 conductor), 4 conductor, and 7 conductor. Twin: gray jacket, 18 to 10 AWG. Multi-conductor: blue jacket, 10 to 14 AWG. Stocked 7-conductor SKUs are AUF-TC1012-7, AUF-TC101214-7, AUF-TC1014-7, and AUF-TC1214-7. AUF-TC144 is the 4 conductor.
Can I buy trailer cable in bulk?
Yes. Trailer cable is sold by the foot on the online store. For a reel, send the size, the conductor count, and the length and we will quote it.
How much does trailer cable cost?
Typical price on the online store is $0.66 to $5 per foot. 18/2 twin sits near $0.66. 7-conductor sits near $5. Sold by the foot. See the store for today's price: Trailer cable.
What is the temperature range and voltage rating?
600 V. Temperature: −55°C to 105°C (−67°F to 221°F). That is the Arctic Ultraflex Blue TPE jacket range, the same compound used on the single conductor wire.
Is Polar Wire Trailer Cable resistant to environmental and chemical exposure?
Yes. The Arctic Ultraflex Blue TPE jacket resists water, salt, oil, gasoline, acids, chemicals, sunlight, and abrasion. Twin cable uses a gray jacket. Multi-conductor uses a blue jacket.
What constructions and sizes are stocked?
Twin: gray jacket, red and black tinned conductors, 18, 16, 14, 12, and 10 AWG.
Multi-conductor: blue jacket, 4 and 7 conductor, 10 to 14 AWG. Stocked SKUs are AUF-TC1012-7, AUF-TC101214-7, AUF-TC1014-7 (bare copper), AUF-TC1214-7, and AUF-TC144.
Sold by the foot.
What is "Class K 100% Copper Stranding" and why is it used in your wire?
100% copper, not copper-clad. On this cable the copper is tinned, except AUF-TC1014-7, which is bare copper. Class K uses 30 AWG strands bunched into each size. Strand counts by size are in the Class K stranding comparison chart.
What are the outer diameter specifications?
Nominal OD is on the spec table. AUF-TC144 is 0.57". AUF-TC1012-7 is 0.66". AUF-TC1014-7 is 0.62" / 0.59". Call us for AUF-TC1214-7.
Buy it, or have it quoted
Cut-to-length and sample spools are on the online store. Custom constructions are quoted from here. Minimums apply.
