Custom cable assembly
Custom 1 to 3 conductor cable assemblies, 18 AWG to 1000 MCM. Price a standard build on the Polar Wire store, or send a drawing to sales.
Approvals and origin
At a glance
- RangeRange
- 18 AWG to 1000 MCM
- WorkWork
- 1 to 3 conductor
- LengthLength
- Cut length
- MOQAssembly MOQ
- None for retail
- ShipIn-stock average
- 5 to 10 days
- BuyBuilder
- On the store
What you can build

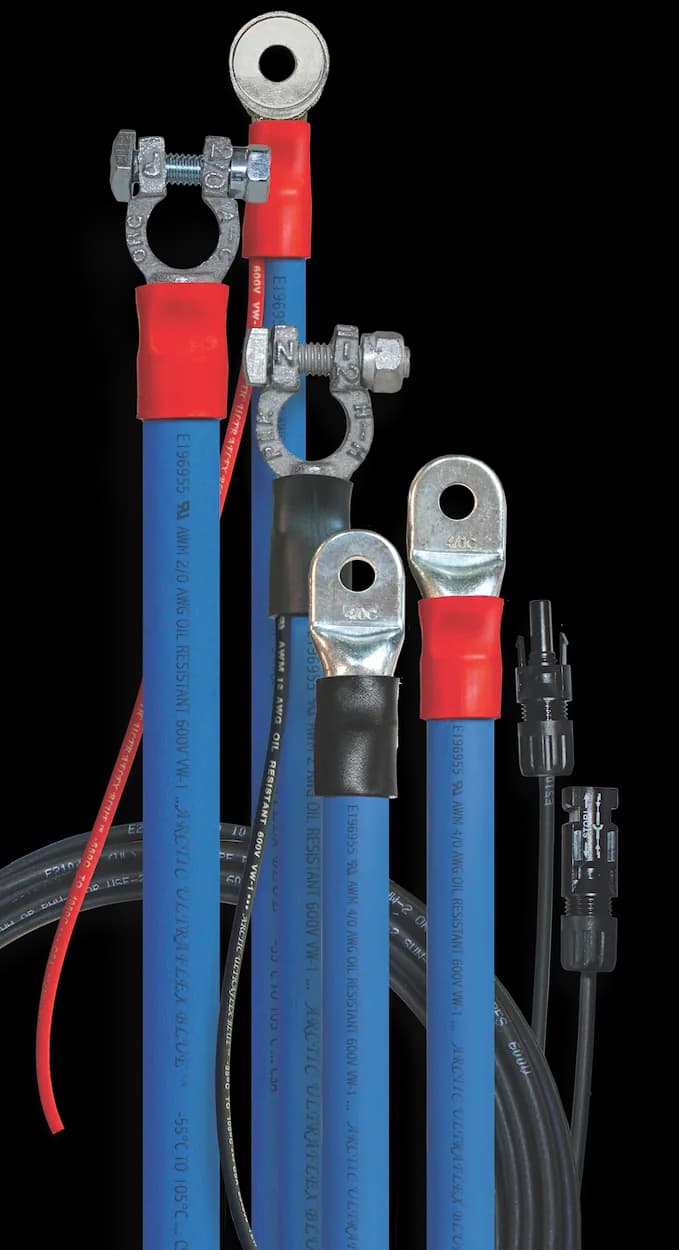

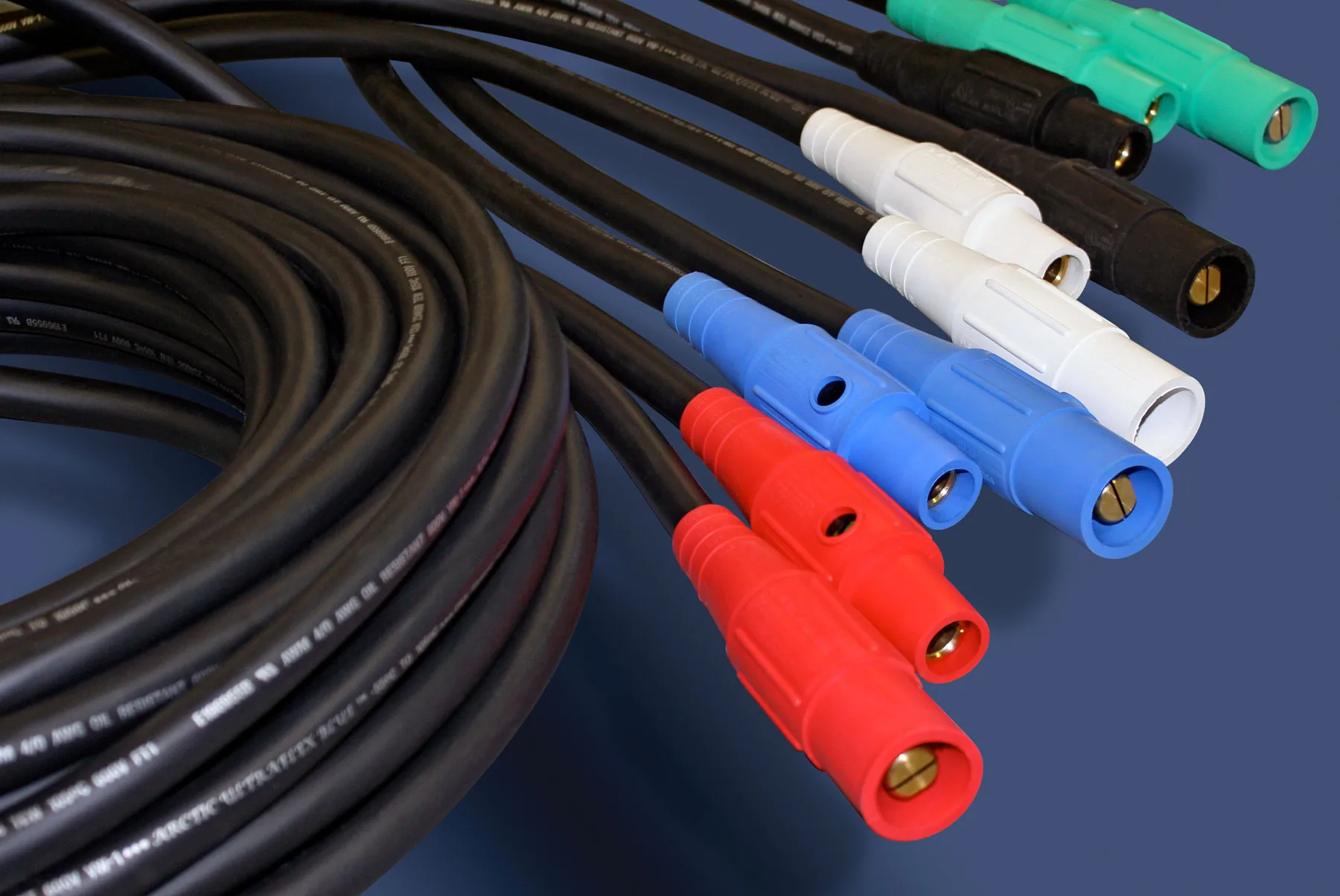

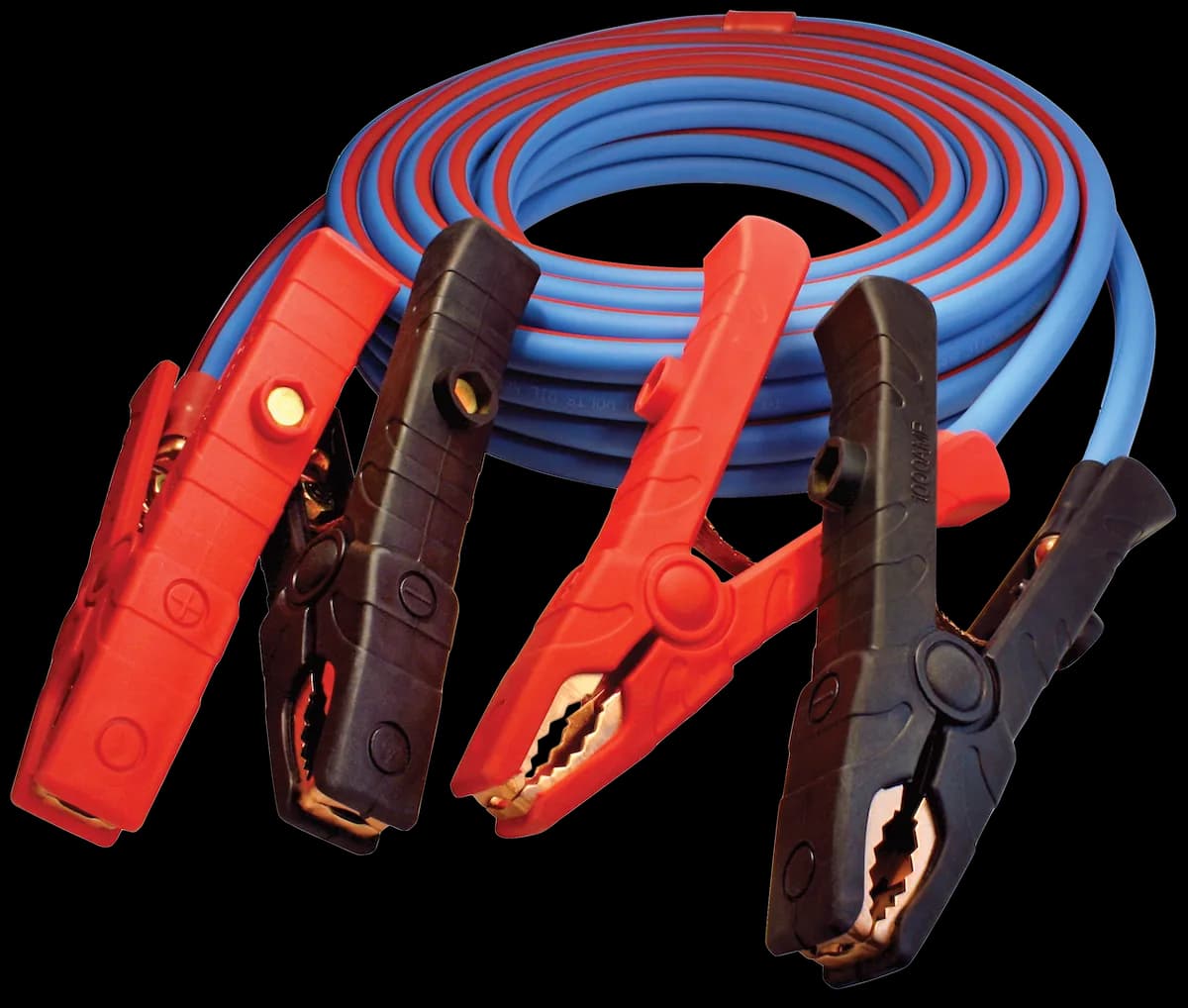

Battery cables, jumper cables, camlock jumpers, and telecom power cables. The live builder is on the online store.
What the store builder asks
Wire, both ends, cut length, and quantity. A priced cable goes in the cart.
01
The wire
Type and gauge, from the constructions Polar Wire manufactures and stocks.
02
Both ends
The termination on each end, with the stud size. Each end is specified separately. SY housings join two heavy cables.
03
Cut length
The store builder prices cut length.
04
Quantity
One cable, or a hundred. Assemblies for retail customers carry no minimum.
Two ways to buy
Stocked wire and parts
Build it on the online store
A stocked wire, stocked ends, a cut length, and a quantity. The store prices it and takes payment.

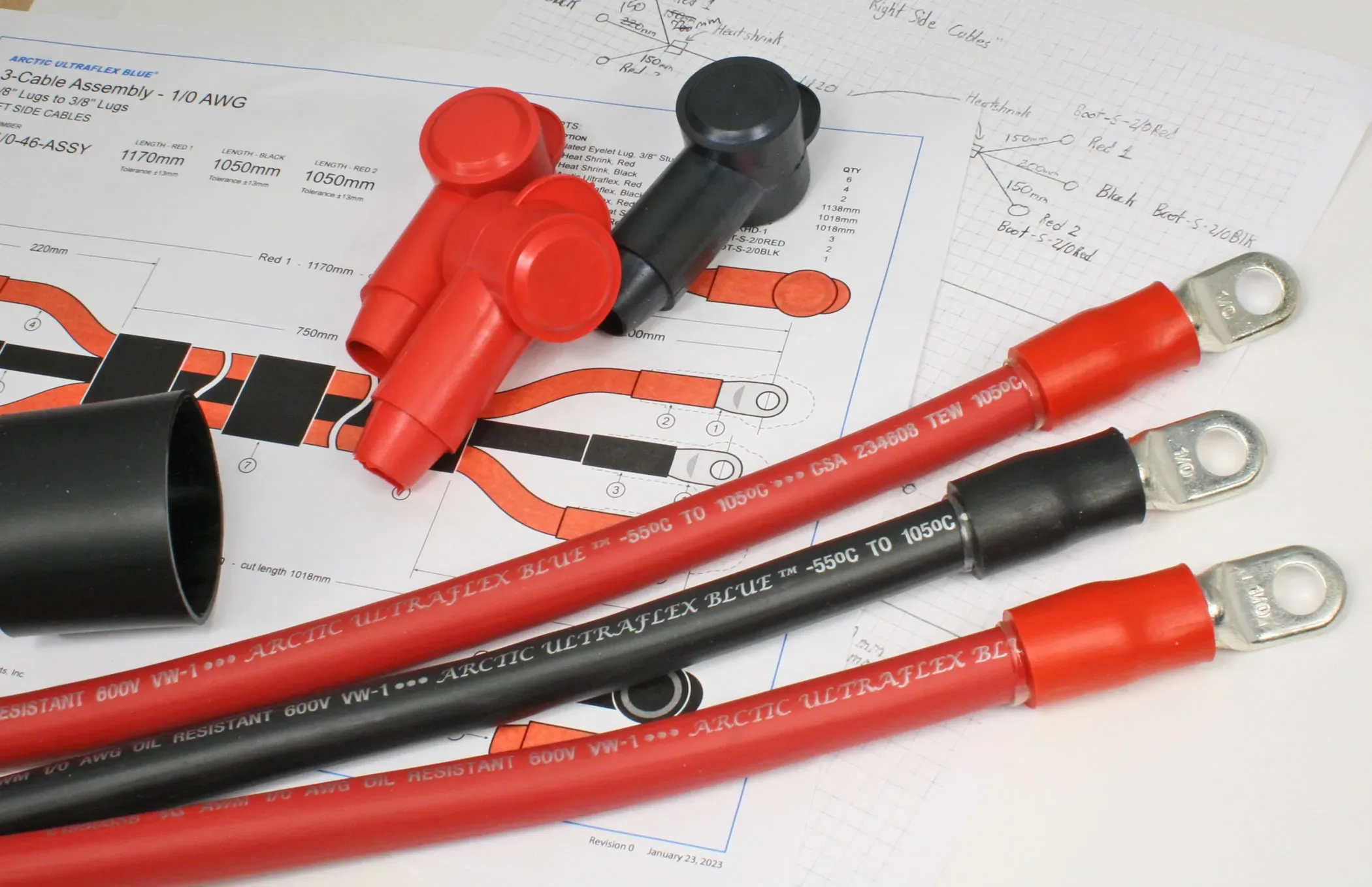

Open custom cablesDrawings and non-standard work
Send a drawing
A non-standard termination, a special wire construction, a documentation package, or a first article. Custom colors or a print legend are private label.
Send a drawingFrequently asked questions
Stocked wire, stocked ends, a cut length, and a quantity. Build it on the online store, or send a drawing.
What custom cables does Polar Wire build?
1 to 3 conductor cable assemblies from 18 AWG to 1000 MCM: battery cables, jumper and booster cables, camlock jumpers, and telecom power cables. Strength is large-gauge, 4/0 through 1000 MCM. The live builder is on store.polarwire.com/custom-cables.
When should I build on the online store and when should I send a drawing?
Build on the online store when the cable is a stocked wire, stocked ends, a cut length, and a quantity. Send a drawing when any of that stops being true: a non-standard termination, a special wire construction, a documentation package, a first article, or a committed date. Custom colors or a print legend on the wire are private label, from 10,000 ft.
Is the length cut length or finished length?
Cut length. The store builder prices the length of cable that is cut. That is the number to send on a drawing as well.
Is there a minimum quantity on a custom cable?
No. Assemblies for retail customers carry no minimum, so a built cable can be one cable. Custom colors or a print legend on the wire are private label, from 10,000 ft.
How long will a custom cable take to arrive?
A cable built from wire already in stock typically ships in 5 to 10 days, and orders under 50 assemblies ship within 10 days on average. A full production run typically reaches shipment in 15 to 30 days from order. Those are averages across real orders rather than commitments.
Can SY housings join two heavy cables?
Yes. SY housings join two heavy cables. Specify both ends, the stud sizes, and the cut length on the online store builder or on a drawing.
Send a drawing
Send the wire, both ends, the cut length, and the quantity. We come back with a price.
