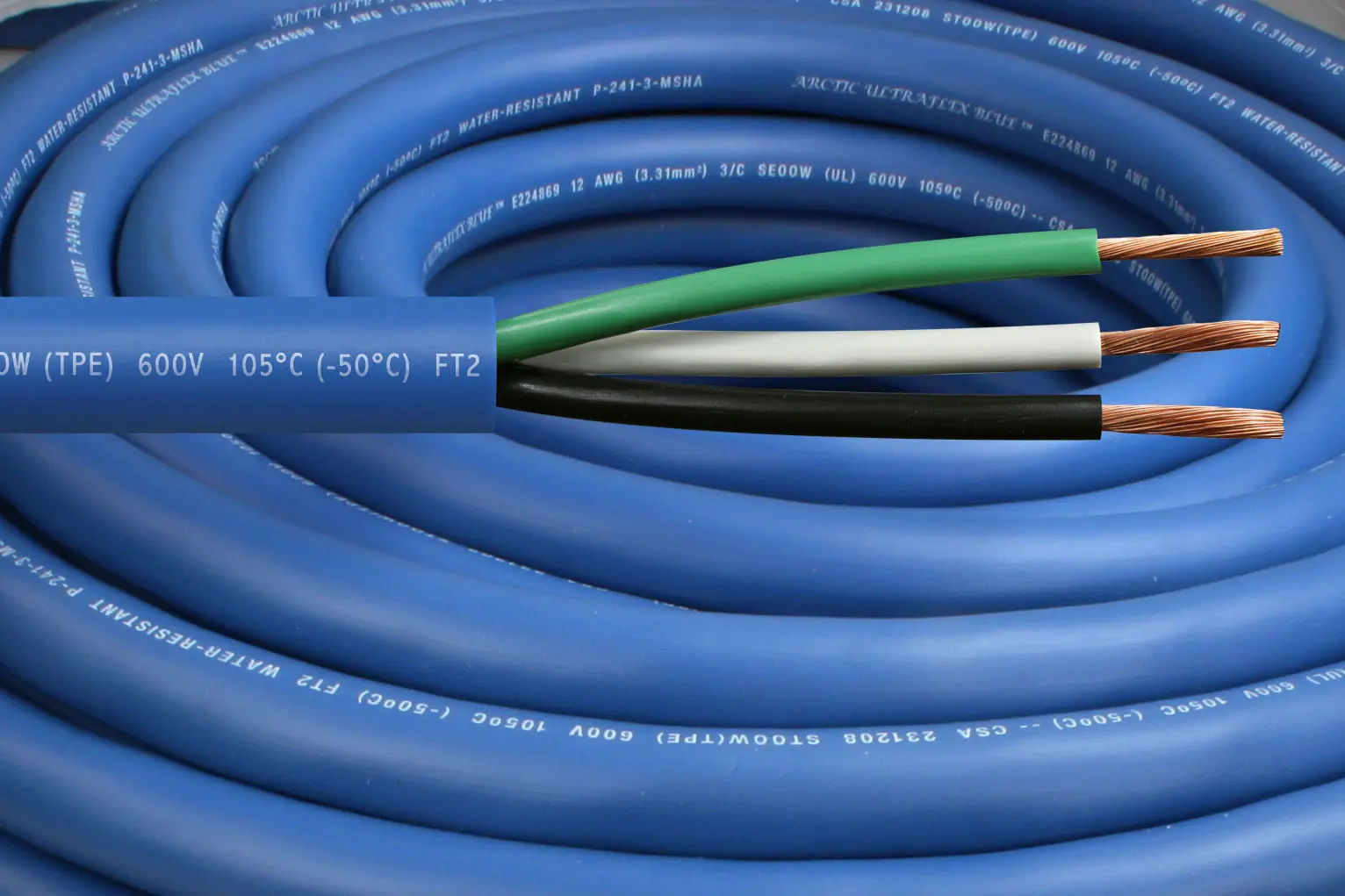

Arctic Ultraflex Blue industrial power cord with three color-coded conductors exposed

Industrial Power Cord

Industrial power cord. SEOOW portable cord, 18/2 to 2/5.
−58°F to 221°F. 600 V.

Buy by the footFinished cords

Approvals and origin

UL SEOOW 600 V−58°F to 221°FCSA STOOWMSHA P-241-3Made in the USA

At a glance

600 V
18/2 to 2/5
300 V
18/3 to 12/3 at 300 V
Temperature
−58°F to 221°F
UL
SEOOW, file E224869
CSA
STOOW, −58°F to 221°F
Water
Approved for submersion

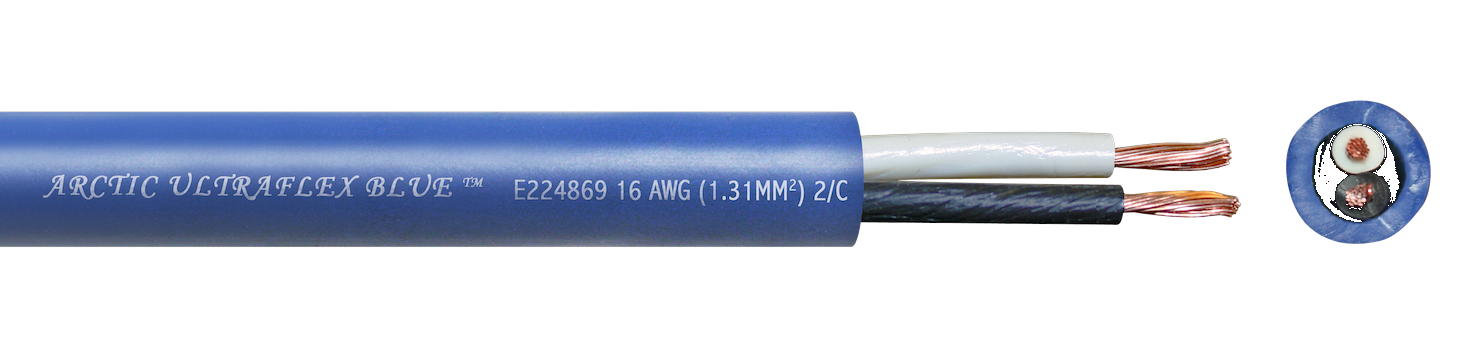

16 AWG 2 conductor Arctic Ultraflex Blue SEOOW power cord, jacket cut back, with cross-section
SEOOW portable cord. Color-coded conductors. Blue Arctic Ultraflex Blue jacket.

SEOOW portable cord, −58°F

Polar Wire Industrial Power Cord is a multi-conductor portable cord with an Arctic Ultraflex Blue TPE jacket. UL Listed SEOOW at 600 V for NEC Article 400, file E224869. CSA STOOW. It stays flexible at −58°F (−50°C), where a rubber cord stiffens. Suitable for indoor and outdoor use, wet locations, and water submersion. Manufactured in the United States.

  • Arctic Ultraflex Blue TPE. Stays flexible at −58°F (−50°C). Oil, grease, gas, salt, sunlight and chemicals.
  • UL Listed SEOOW 600 V. NEC Article 400, file E224869. CSA STOOW. Class K copper, color-coded conductors.
  • Finished extension cords. Clear lighted NEMA 5-15 (12 AWG) and NEMA 5-20 (10 AWG) ends, 3 ft to 100 ft.
Finished extension cords

Applications

Construction lighting, industrial machines, tools, motors, dockside and mining. Sold by the foot, or as finished Arctic Ultraflex Blue extension cords.

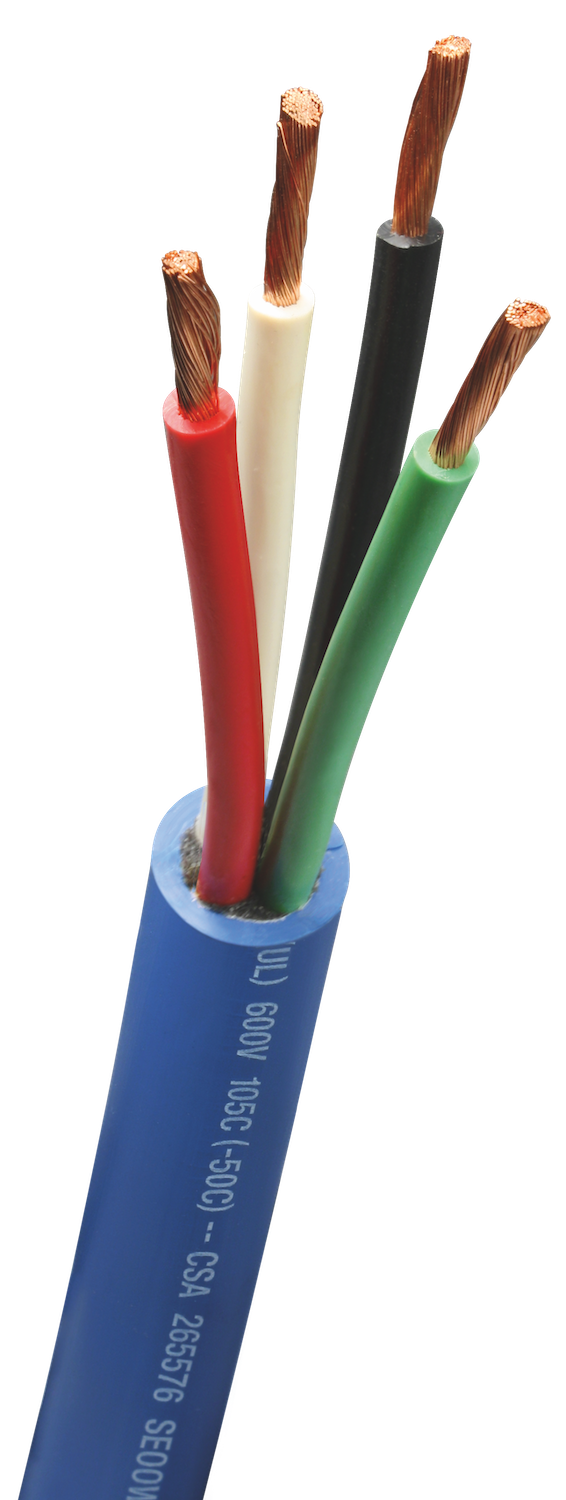

10 AWG 4 conductor Arctic Ultraflex Blue power cord, jacket cut back
Jobsite power and lighting

Construction sites, portable power, indoor and outdoor. Approved for submersion.

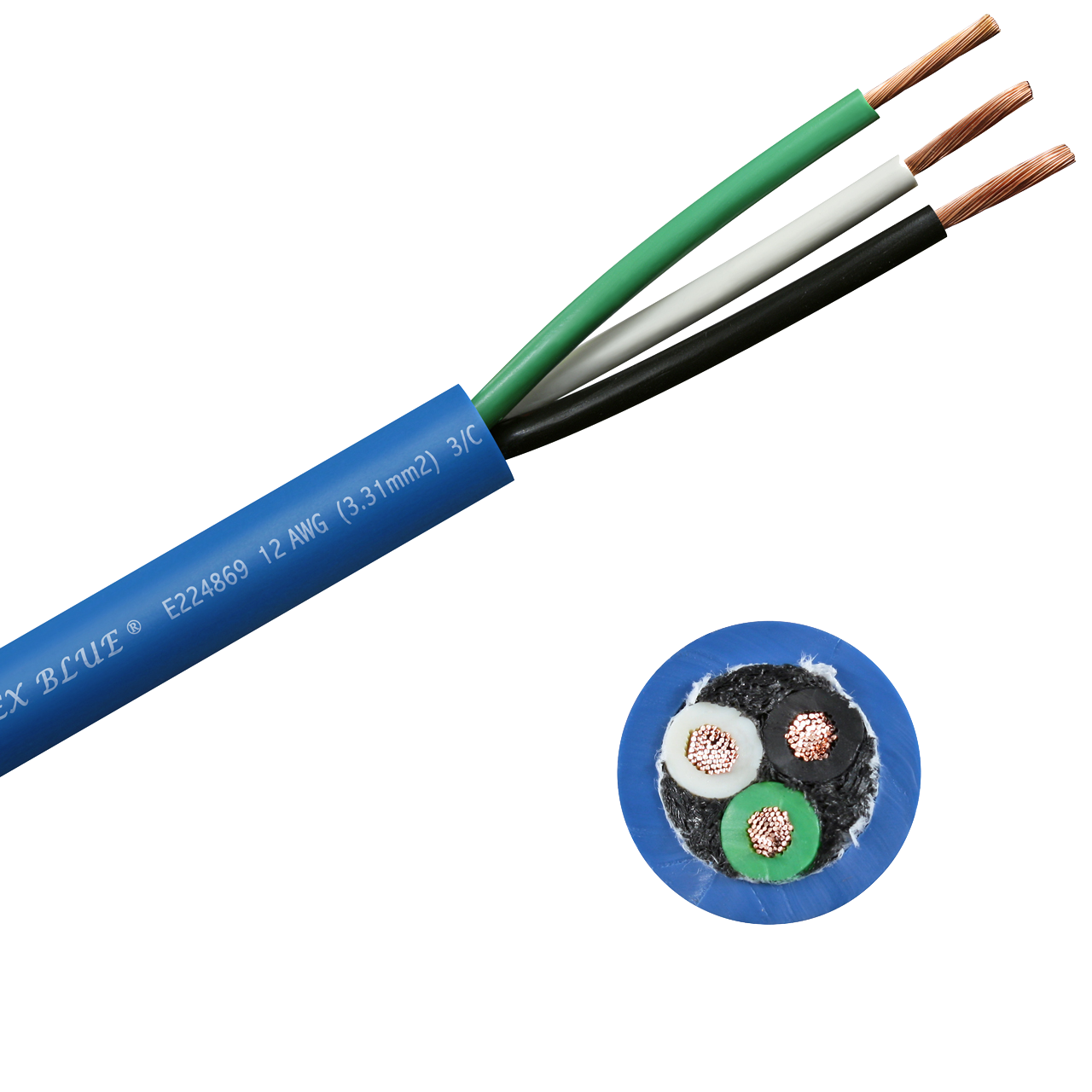

12 AWG 3 conductor Arctic Ultraflex Blue SEOOW power cord
Tools and machines

Heavy-duty tools, motors, industrial machines, large appliances.

Arctic Ultraflex Blue extension cord with a clear lighted molded end
Finished extension cords

Finished Arctic Ultraflex Blue extension cords, 3 ft to 100 ft, with lighted NEMA 5-15 and 5-20 ends.

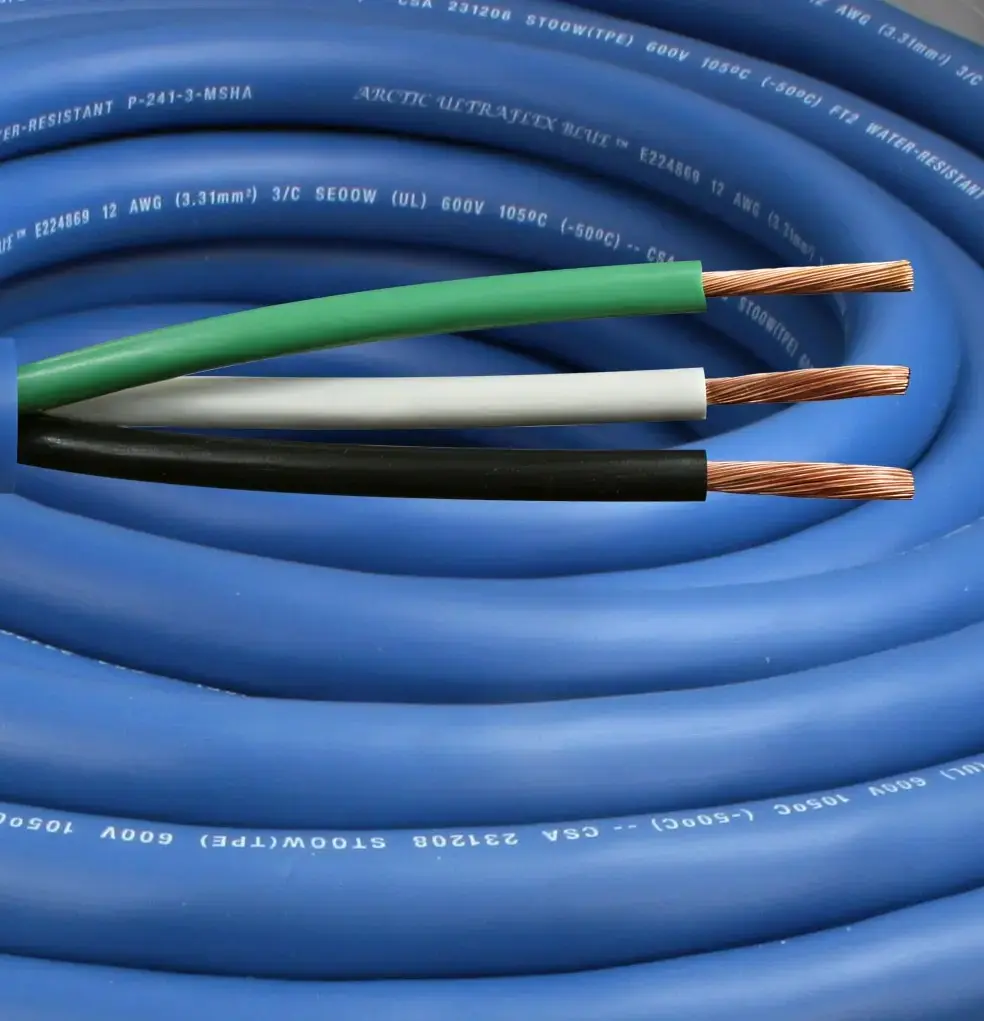

Arctic Ultraflex Blue power cord with three color-coded conductors exposed
Wet and mining duty

MSHA P-241-3. Dockside, mining, and outdoor runs. SEOOW 600 V.

Extension cords from this cord

Finished Arctic Ultraflex Blue extension cords from this SEOOW. Clear lighted NEMA plugs and connectors. 600 V. 12 AWG uses NEMA 5-15. 10 AWG uses NEMA 5-20, which does not fit a standard wall outlet.

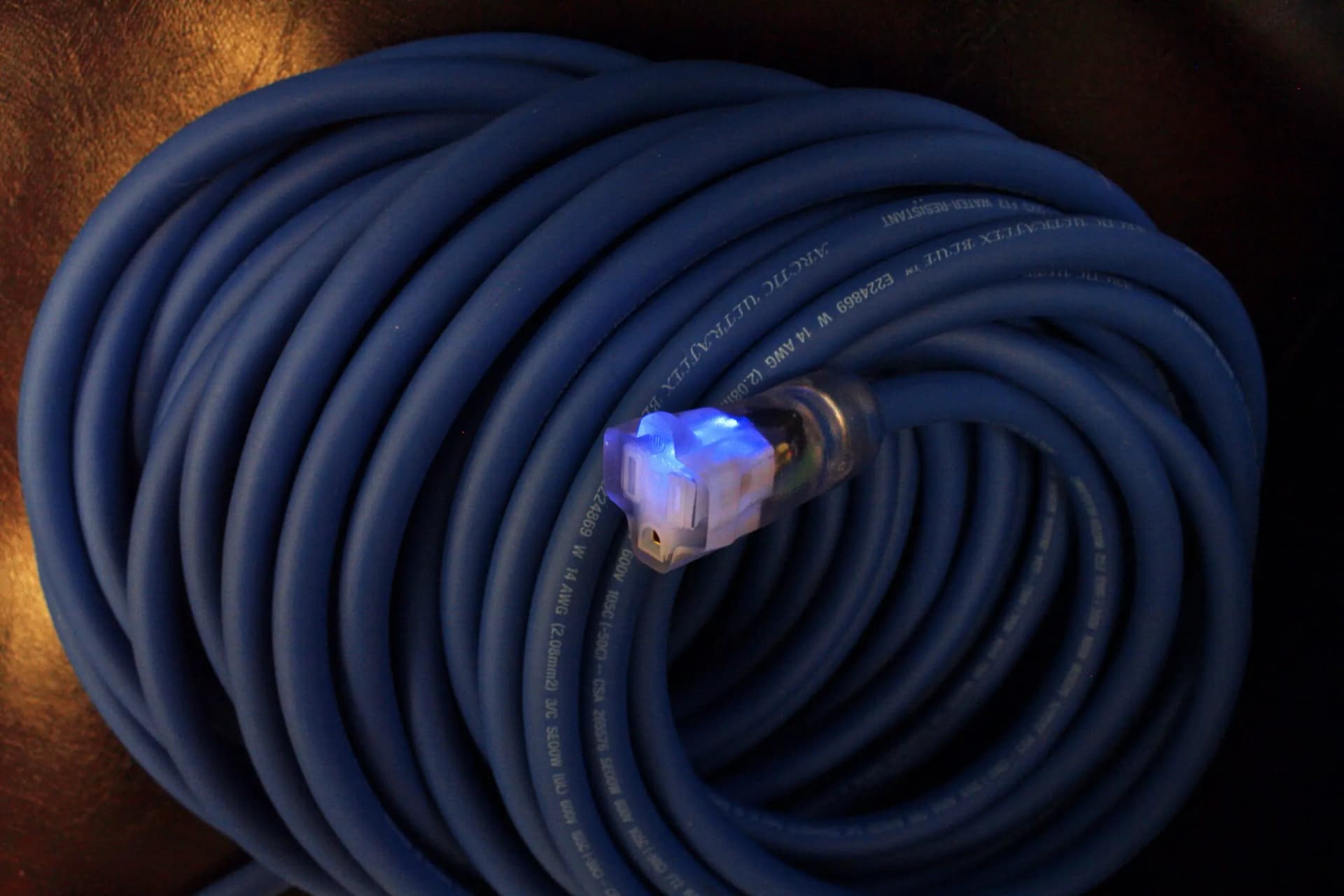

Arctic Ultraflex Blue extension cord, clear lighted molded end glowing
Clear lighted ends. They light when the cord is energized.

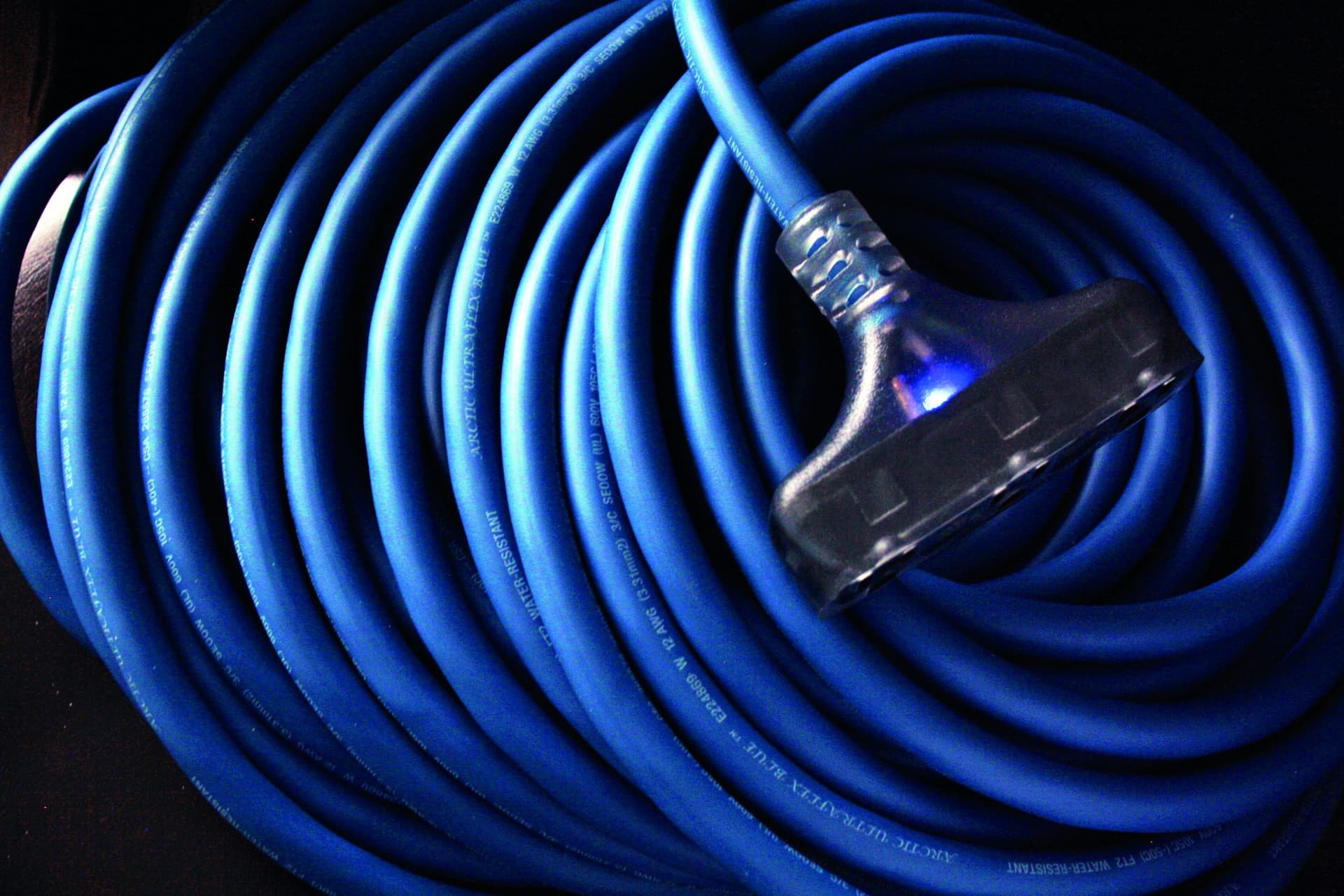

Arctic Ultraflex Blue extension cord coiled, lighted end
Same SEOOW cord. Finished extension cords, 3 ft to 100 ft.

NEMA 5-15, single outlet

12 AWG, 15 amp, NEMA 5-15. Lengths on the online store: 10, 25, 50, and 100 ft. 14 AWG finished cords are retired. There is no 16 gauge finished cord.

Part numberAWGLengthBuy
AUF-PC12-101210'Shop
AUF-PC12-251225'Shop
AUF-PC12-501250'Shop
AUF-PC12-10012100'Shop

NEMA 5-15, triple outlet

12 AWG only. Shortest set is 3 ft.

Part numberAWGLengthBuy
AUF-PCT12-3123'Shop
AUF-PCT12-101210'Shop
AUF-PCT12-251225'Shop
AUF-PCT12-501250'Shop
AUF-PCT12-10012100'Shop

NEMA 5-20, single outlet

10 AWG only. Configured for a 20 amp outlet. Does not fit a standard wall outlet.

Part numberAWGLengthBuy
AUF-PC10-251025'Shop
AUF-PC10-501050'Shop
AUF-PC10-10010100'Shop

* Special order. Minimums apply. Shop links go to the Polar Wire store. Rows without a product page still shop the extension cord category.

Specifications, every size

AUF-123 is 12 AWG with three conductors. 16/3, 14/3, 12/3 and 10/3 are the sizes held in stock. Other 600 V sizes are special order. The 300 V junior cord is quote only.

Conductors
Units
Columns
View

600 V power cord

Inner colorsJacketBuy
AUF-182*18/216/30.345"10BlackWhiteBlueSpecial order
AUF-183*18/316/30.365"10BlackWhiteGreenBlueSpecial order
AUF-184*18/416/30.395"7BlackWhiteRedGreenBlueSpecial order
AUF-185*18/516/30.465"5.6BlackWhiteRedGreenOrangeBlueSpecial order
AUF-162*16/226/30.370"13BlackWhiteBlueSpecial order
AUF-16316/326/30.390"13BlackWhiteGreenBlueShop
AUF-164*16/426/30.420"10BlackWhiteRedGreenBlueSpecial order
AUF-165*16/526/30.495"8BlackWhiteRedGreenOrangeBlueSpecial order
AUF-142*14/241/30.505"18BlackWhiteBlueSpecial order
AUF-14314/341/30.525"18BlackWhiteGreenBlueShop
AUF-144*14/441/30.575"15BlackWhiteRedGreenBlueSpecial order
AUF-145*14/541/30.652"12BlackWhiteRedGreenOrangeBlueSpecial order
AUF-122*12/265/30.570"25BlackWhiteBlueSpecial order
AUF-12312/365/30.595"25BlackWhiteGreenBlueShop
AUF-124*12/465/30.645"20BlackWhiteRedGreenBlueSpecial order
AUF-125*12/565/30.710"16BlackWhiteRedGreenOrangeBlueSpecial order
AUF-102*10/2104/30.655"30BlackWhiteBlueSpecial order
AUF-10310/3104/30.662"30BlackWhiteGreenBlueShop
AUF-104*10/4104/30.705"25BlackWhiteRedGreenBlueSpecial order
AUF-105*10/5104/30.771"20BlackWhiteRedGreenOrangeBlueSpecial order
AUF-83*8/396/28.700"40BlackWhiteGreenBlueSpecial order
AUF-84*8/47x24/30.929"35BlackWhiteRedGreenBlueSpecial order
AUF-85*8/596/28.850"28BlackWhiteRedGreenOrangeBlueSpecial order
AUF-63*6/396/26.818"55BlackWhiteGreenBlueSpecial order
AUF-64*6/47x37/301.038"45BlackWhiteRedGreenBlueSpecial order
AUF-65*6/596/26.992"36BlackWhiteRedGreenOrangeBlueSpecial order
AUF-43*4/396/24.911"70BlackWhiteGreenBlueSpecial order
AUF-44*4/47x60/301.232"60BlackWhiteRedGreenBlueSpecial order
AUF-45*4/596/241.203"48BlackWhiteRedGreenOrangeBlueSpecial order
AUF-23*2/37X7/0.02231.158"95BlackWhiteGreenBlueSpecial order
AUF-24*2/47X7/0.02231.267"80BlackWhiteRedGreenBlueSpecial order
AUF-25*2/57X7/0.02231.389"64BlackWhiteRedGreenOrangeBlueSpecial order
AUF-182*
AWG / conductors
18/2
Ampacity
10
Stranding
16/30
Nominal OD
.345"
BlackWhiteSpecial order
AUF-183*
AWG / conductors
18/3
Ampacity
10
Stranding
16/30
Nominal OD
.365"
BlackWhiteGreenSpecial order
AUF-184*
AWG / conductors
18/4
Ampacity
7
Stranding
16/30
Nominal OD
.395"
BlackWhiteRedGreenSpecial order
AUF-185*
AWG / conductors
18/5
Ampacity
5.6
Stranding
16/30
Nominal OD
.465"
BlackWhiteRedGreenOrangeSpecial order
AUF-162*
AWG / conductors
16/2
Ampacity
13
Stranding
26/30
Nominal OD
.370"
BlackWhiteSpecial order
AUF-163
AWG / conductors
16/3
Ampacity
13
Stranding
26/30
Nominal OD
.390"
BlackWhiteGreenShop
AUF-164*
AWG / conductors
16/4
Ampacity
10
Stranding
26/30
Nominal OD
.420"
BlackWhiteRedGreenSpecial order
AUF-165*
AWG / conductors
16/5
Ampacity
8
Stranding
26/30
Nominal OD
.495"
BlackWhiteRedGreenOrangeSpecial order
AUF-142*
AWG / conductors
14/2
Ampacity
18
Stranding
41/30
Nominal OD
.505"
BlackWhiteSpecial order
AUF-143
AWG / conductors
14/3
Ampacity
18
Stranding
41/30
Nominal OD
.525"
BlackWhiteGreenShop
AUF-144*
AWG / conductors
14/4
Ampacity
15
Stranding
41/30
Nominal OD
.575"
BlackWhiteRedGreenSpecial order
AUF-145*
AWG / conductors
14/5
Ampacity
12
Stranding
41/30
Nominal OD
.652"
BlackWhiteRedGreenOrangeSpecial order
AUF-122*
AWG / conductors
12/2
Ampacity
25
Stranding
65/30
Nominal OD
.570"
BlackWhiteSpecial order
AUF-123
AWG / conductors
12/3
Ampacity
25
Stranding
65/30
Nominal OD
.595"
BlackWhiteGreenShop
AUF-124*
AWG / conductors
12/4
Ampacity
20
Stranding
65/30
Nominal OD
.645"
BlackWhiteRedGreenSpecial order
AUF-125*
AWG / conductors
12/5
Ampacity
16
Stranding
65/30
Nominal OD
.710"
BlackWhiteRedGreenOrangeSpecial order
AUF-102*
AWG / conductors
10/2
Ampacity
30
Stranding
104/30
Nominal OD
.655"
BlackWhiteSpecial order
AUF-103
AWG / conductors
10/3
Ampacity
30
Stranding
104/30
Nominal OD
.662"
BlackWhiteGreenShop
AUF-104*
AWG / conductors
10/4
Ampacity
25
Stranding
104/30
Nominal OD
.705"
BlackWhiteRedGreenSpecial order
AUF-105*
AWG / conductors
10/5
Ampacity
20
Stranding
104/30
Nominal OD
.771"
BlackWhiteRedGreenOrangeSpecial order
AUF-83*
AWG / conductors
8/3
Ampacity
40
Stranding
96/28
Nominal OD
.700"
BlackWhiteGreenSpecial order
AUF-84*
AWG / conductors
8/4
Ampacity
35
Stranding
7x24/30
Nominal OD
.929"
BlackWhiteRedGreenSpecial order
AUF-85*
AWG / conductors
8/5
Ampacity
28
Stranding
96/28
Nominal OD
.850"
BlackWhiteRedGreenOrangeSpecial order
AUF-63*
AWG / conductors
6/3
Ampacity
55
Stranding
96/26
Nominal OD
.818"
BlackWhiteGreenSpecial order
AUF-64*
AWG / conductors
6/4
Ampacity
45
Stranding
7x37/30
Nominal OD
1.038"
BlackWhiteRedGreenSpecial order
AUF-65*
AWG / conductors
6/5
Ampacity
36
Stranding
96/26
Nominal OD
.992"
BlackWhiteRedGreenOrangeSpecial order
AUF-43*
AWG / conductors
4/3
Ampacity
70
Stranding
96/24
Nominal OD
.911"
BlackWhiteGreenSpecial order
AUF-44*
AWG / conductors
4/4
Ampacity
60
Stranding
7x60/30
Nominal OD
1.232"
BlackWhiteRedGreenSpecial order
AUF-45*
AWG / conductors
4/5
Ampacity
48
Stranding
96/24
Nominal OD
1.203"
BlackWhiteRedGreenOrangeSpecial order
AUF-23*
AWG / conductors
2/3
Ampacity
95
Stranding
7X7/0.0223
Nominal OD
1.158"
BlackWhiteGreenSpecial order
AUF-24*
AWG / conductors
2/4
Ampacity
80
Stranding
7X7/0.0223
Nominal OD
1.267"
BlackWhiteRedGreenSpecial order
AUF-25*
AWG / conductors
2/5
Ampacity
64
Stranding
7X7/0.0223
Nominal OD
1.389"
BlackWhiteRedGreenOrangeSpecial order

300 V junior power cord

Inner colorsBuy
AUF-183J*18/316/30.310"10BlackWhiteGreenSpecial order
AUF-163J*16/326/30.330"13BlackWhiteGreenSpecial order
AUF-143J*14/341/30.370"18BlackWhiteGreenSpecial order
AUF-123J*12/365/30.435"25BlackWhiteGreenSpecial order
AUF-183J*
AWG / conductors
18/3
Ampacity
10
Stranding
16/30
Nominal OD
.310"
BlackWhiteGreenSpecial order
AUF-163J*
AWG / conductors
16/3
Ampacity
13
Stranding
26/30
Nominal OD
.330"
BlackWhiteGreenSpecial order
AUF-143J*
AWG / conductors
14/3
Ampacity
18
Stranding
41/30
Nominal OD
.370"
BlackWhiteGreenSpecial order
AUF-123J*
AWG / conductors
12/3
Ampacity
25
Stranding
65/30
Nominal OD
.435"
BlackWhiteGreenSpecial order

* Occasionally stocked. Generally special order. Minimums may apply. Ampacities of 600 V and 1000 V 105°C AWM wires in air, for a single conductor in free air, per NEC table 310-17 adjusted for 105°C. Engineering information only. The exact application may need approval from the authority having local jurisdiction. Cold temperature rating is −50°C.

Arctic Ultraflex Blue extension cord with a lighted molded connector

By the foot, or as a finished cord.

UL Listed SEOOW 600 V, file E224869. Stays flexible at −58°F. Sold by the foot, and as finished extension cords.

Approvals and ratings

UL file E224869. CSA 265576. Jacket print below.

UL Listed SEOOW

File E224869. 600 V

UL Listed SEOOW 600 V for NEC Article 400.

−58°F to 221°F

−50°C to 105°C

Stays flexible at −58°F. Oil and water resistant.

CSA STOOW

CSA STOOW (TPE), −58°F to 221°F. FT2, water resistant.

MSHA P-241-3

Flame resistance and mining applications.

Submersion

Suitable and approved for submersion. Non-wicking polypropylene fillers.

Made in the USA

Made in the USA

Manufactured by Polar Wire Products in the United States.

Typical legend printed on the cord

E224869 16 AWG (1.31mm2) 2/C SEOOW (UL) 600V 105C (-50C). CSA 265576 SEOOW 600V 105C (-50C) FT2 WATER RESISTANT

Documents and resources

Cord spec sheet, finished extension sets, and Class K resistance. If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.

Catalog and sales sheetSEOOW portable cord.Extension cordsFinished NEMA extension sets.Available gauges and options600 V and 300 V junior constructions.Class K DC resistanceResistance per size for voltage drop math.

Frequently asked questions

If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.

What is industrial power cord?

Industrial power cord is Polar Wire's UL Listed SEOOW portable cord: Arctic Ultraflex Blue TPE jacket, -50°C to 105°C (-58°F to 221°F), 600 V, file E224869. CSA Certified STOOW. Sold by the foot, and as finished Arctic Ultraflex Blue extension cords.

What is a flexible power cord?

This flexible power cord is the same industrial power cord: Arctic Ultraflex Blue TPE that stays flexible at -50°C (-58°F). UL Listed SEOOW, 600 V. Sold by the foot. Finished 10 AWG and 12 AWG extension cords are on the online store. Lengths are in "Can I get it in a set length?" Other bulk sizes are special order, and minimums may apply.

What is the temperature rating of this power cord?

-50°C to 105°C, which is -58°F to 221°F. That is the UL Listed SEOOW rating and the CSA STOOW rating on Polar Wire Industrial Power Cord.

What is portable cord?

Portable cord is the UL family this product belongs to. Polar Wire Industrial Power Cord is SEOOW, a 600 V portable cord type. The letter breakdown is in "What is SEOOW cable?" below. File E224869.

What gauge cord do I need for a 20 amp circuit?

The table on this page gives 12/3 an ampacity of 25 amps and 10/3 an ampacity of 30 amps, so 12 AWG is the smallest that covers a 20 amp circuit and 10 AWG is what gives you headroom on a long run or a hard-starting load. Those figures are engineering information only. Voltage drop over length is a separate calculation.

What makes a cord a cold weather extension cord?

Polar Wire Industrial Power Cord uses Arctic Ultraflex Blue TPE, rated from -58°F to 221°F, which is -50°C to 105°C. UL Type SEOOW, 600 V, file E224869.

What is SEOOW cable?

SEOOW is a UL portable cord type. S is hard service at 600 volts, E is thermoplastic elastomer, the two Os mean both the insulation and the jacket are oil resistant, and W means it is rated for outdoor and wet locations. Our cord is UL Listed SEOOW 600V for NEC Article 400 under file E224869 and CSA Certified STOOW from -50 degrees C to 105 degrees C. The 300 volt version of the same construction is the junior cord.

Can I get it in a set length?

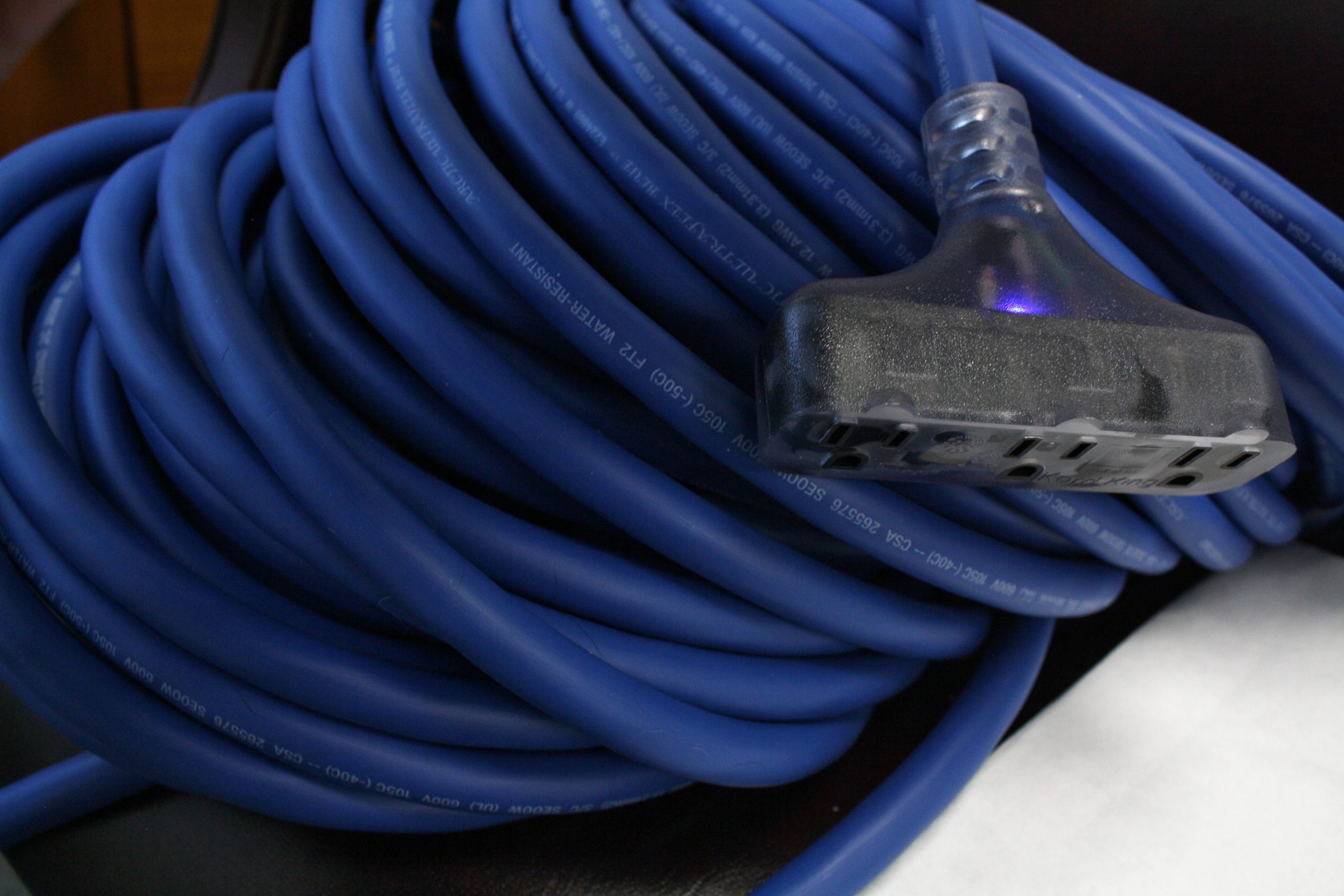

Finished Arctic Ultraflex Blue extension cords are on the online store at store.polarwire.com/extension-cords/. 10 AWG, 20 amp, NEMA 5-20: 25, 50, and 100 ft, SKUs AUF-PC10-25, AUF-PC10-50, and AUF-PC10-100. Those will not fit a 5-15 wall outlet. 12 AWG, 15 amp, NEMA 5-15, single outlet: 10, 25, 50, and 100 ft. 12 AWG, 15 amp, NEMA 5-15, triple outlet: 3, 10, 25, 50, and 100 ft. Typical catalog price for those visible sets is about $38 for a 3 ft 12 AWG triple to $424 for a 100 ft 10 AWG 20 amp. See the store for today's price. Bulk SEOOW in 16/3, 14/3, 12/3 and 10/3 is sold by the foot. Other bulk sizes are special order, and minimums may apply. 14 AWG finished cords are retired. There is no 16 gauge finished cord on the online store.

How much does industrial power cord cost?

Typical price for bulk industrial power cord on the online store is $0.70 to $14 per foot, depending on gauge. 18/3 SEOOW sits near $0.70. 2/5 sits near $14. That is the cord sold by the foot, not a finished extension set. See the store for today's price: store.polarwire.com/arctic-ultraflex-blue-power-cord/.

Can this cord be used in water?

It is suitable for and approved for submersion in water, and it is rated for indoor and outdoor use and wet locations. The fillers are non-wicking polypropylene, which is what stops water traveling down the inside of a cable that has been nicked. It also carries MSHA approval P-241-3 for flame resistance and mining applications, and Federal and Military use under Federal Spec JC-580B.

Buy it, or have it quoted

Cut lengths are on the online store. Finished Arctic Ultraflex Blue extension cords are on the online store and on this page. Special order sizes and the 300 V junior cord are quoted from here.

Buy by the footCut lengths on the online storeFinished cordsArctic Ultraflex Blue extension cordsCall(907) 561-5955Emailsales@polarwire.comDocumentsCord specs and finished extension setsRetail store7941 Brayton Drive, Anchorage, AK

Request a quote

Tell us the sizes and quantities and we come back with a price.
