Lugs and splices
Compression lugs and splices for conductors up to 1000 MCM, plus battery terminals and mechanical connectors. Match the lug to the strand. Polar Wire wire is Class K.
Approvals and origin
At a glance
- LugsLargest lug
- 1000 MCM
- StudsStud sizes
- #10 to 5/8 inch
- RatingRating
- 35 kV, copper
- ListedListings
- UL and CSA to 90°C
- Class KClass K
- Needs a flex lug
- BuyBuy
- Online store
Shop a category
Code lugs are sized for code-stranded conductor. Flex lugs are sized for fine strand. With a code lug on 2 AWG and larger Class K, step up one lug size. With a flex lug, match the wire size.
Catalog tables
Printed catalog figures.
Scroll the table sideways for all 4 columns
| Part Number | Die Code | Arctic Ultraflex Wire AWG | Code Stranded Wire AWG |
|---|---|---|---|
| HDCL-8-CC | Red | 8 | 8 |
| HDCL-6-CC | Blue | 6 | 6 |
| HDCL-4-CC | Gray | 4 | 4 |
| HDCL-2-CC | Brown | - | 2 |
| HDCL-1-CC | Green | 2 | 1 |
| HDCL-1/0-CC | Pink | 1 | 1/0 |
| HDCL-2/0-CC | Black | 1/0 | 2/0 |
| HDCL-3/0-CC | Orange | 2/0 | 3/0 |
| HDCL-4/0-CC | Purple | 3/0 | 4/0 |
| HDCL-250-CC | Yellow | 4/0 | 250 MCM |
| HDCL-300-CC | White | 250 MCM | 300 MCM |
| HDCL-350-CC | Red | 300 MCM | 350 MCM |
| HDCL-400-CC | Blue | 350 MCM | 400 MCM |
| HDCL-500-CC | Brown | 400 MCM | 500 MCM |
| HDCL-600-CC | Green | 500 MCM | 600 MCM |
| HDCL-750-CC | Black | 600 MCM | 750 MCM |
| HDCL-900-CC | Yellow | 750 MCM | 900 MCM |
| HDCL-1000-CC | White | 900 MCM | 1000 MCM |
Notes
Fine strand flexible wire has a slightly larger conductor diameter than code stranded wire. When using Code Lugs with 2 AWG and larger Arctic Ultraflex Blue® and similar fine strand flexible wire, step up one lug size.
Flex Lugs, sized for the larger conductor diameter of fine strand flexible wire, are available on pages 100-101
• UL Listed, CSA Certified and rated to 90°C (194°F)
Scroll the table sideways for all 5 columns
| Part Number | Stud Size (in) | Die Code | Arctic Ultraflex Wire AWG | Code Stranded Wire AWG |
|---|---|---|---|---|
| HDCLF-814-CC | 1/4" | Red | 8 | 8 |
| HDCLF-614-CC | 1/4" | Blue | 6 | 6 |
| HDCLF-638-CC | 3/8" | Blue | 6 | 6 |
| HDCLF-414-CC | 1/4" | Gray | 4 | 4 |
| HDCLF-438-CC | 3/8" | Gray | 4 | 4 |
| HDCLF-214-CC | 1/4" | Brown | 2 | 2 |
| HDCLF-238-CC | 3/8" | Brown | 2 | 2 |
| HDCLF-212-CC | 1/2" | Brown | 2 | 2 |
| HDCLF-2038-CC | 3/8" | Black | 2/0 | 2/0 |
| HDCLF-2012-CC | 1/2" | Black | 2/0 | 2/0 |
| HDCLF-4038-CC | 3/8" | Purple | 4/0 | 4/0 |
| HDCLF-4012-CC | 1/2" | Purple | 4/0 | 4/0 |
| HDCLF-50038-CC | 3/8" | Pink | 500 MCM/535.3 DLO | 500 MCM |
Notes
Rated 35KV Applications — Copper Conductors Only
Heavy Duty Single Hole and Double Hole Flex Compression Lugs are designed for use with both code stranded and flexible fine stranded copper conductor wire such as Class K Arctic Ultraflex Blue.® Flex Lugs can be used with class G, H, I, K, and M flexible conductors and Diesel Locomotive (DLO) wire.
Flex Lugs are sized for the larger conductor diameter of flexible wire. When using flex lugs with either flexible or code stranded conductors, match the lug to the wire size.
with window
• UL Listed, CSA Certified and rated to 90°C (194°F)
Documents
Section PDFs from the printed catalog.
Two ways to buy

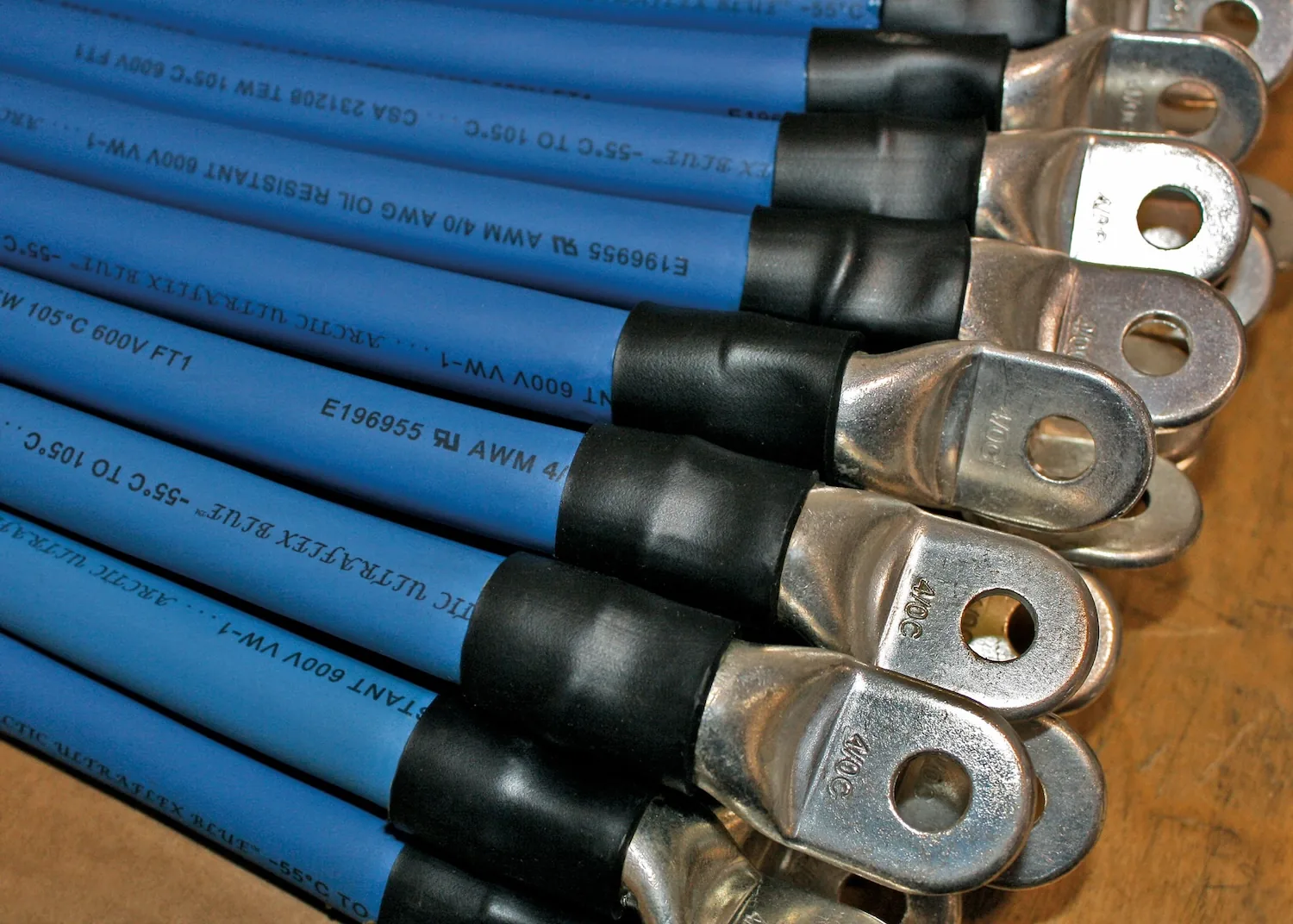

Finished cable
Have it built
A custom assembly arrives with the terminations already crimped.
Custom assemblyFrequently asked questions
If you need something that is not here, ask us: 8am to 5pm AKST, Monday to Friday.
What size lug do I need for my cable?
Conductor size and stud size. Compression lugs and splices are stocked to 1000 MCM, UL Listed and CSA Certified to 90°C, studs from #10 to 5/8 inch. Two-hole lugs are specified by hole spacing on centers. Code lugs fit code strand. Flex lugs fit fine strand. Polar Wire wire is Class K and needs a flex lug.
Do you stock split bolts?
Yes. Copper split bolts are on the online store. Class K wants a compression splice.
Do I have to buy the lugs, or can you crimp them on?
Parts are sold on the online store. A finished cable with the terminations already crimped is a custom assembly.
