Locomotive Cable
2000 V DLO.
Tinned per AAR 589.2000 V DLO, tinned copper per AAR 589
Approvals and origin
At a glance
- VoltageVoltage
- 2000 V RHH/RHW-2
- CSACSA
- 1000 V Type RW90
- CopperConductor
- Tinned per AAR 589
- SizesSizes
- 10 AWG to 777.7 MCM
- ULUL
- RHH/RHW-2, file E18321
- BuyBuy
- Request a quote
DLO, jumpers, and jump-start
Diesel locomotive cable for the locomotive and the shop. Superflex booster sets for the yard.
DLO, 2000 V diesel locomotive cable
Tinned copper per AAR 589. EPDM insulation, heavy-duty CPE jacket. 10 AWG to 777.7 MCM.
Specifications
Jumper and booster cables
Built from Arctic Superflex Blue. 8 AWG through 1/0. Polarity stripe extruded in.
Jumper cables
SAE J1283 jump-start cables
Keyed two-pin plugs, 500 A continuous. Field-serviceable set screws.
Jump-start cables
Locomotive, shop, and yard
2000 V RHH/RHW-2. Cable tray rated at 1/0 and larger. −40°F to 194°F wet or dry.

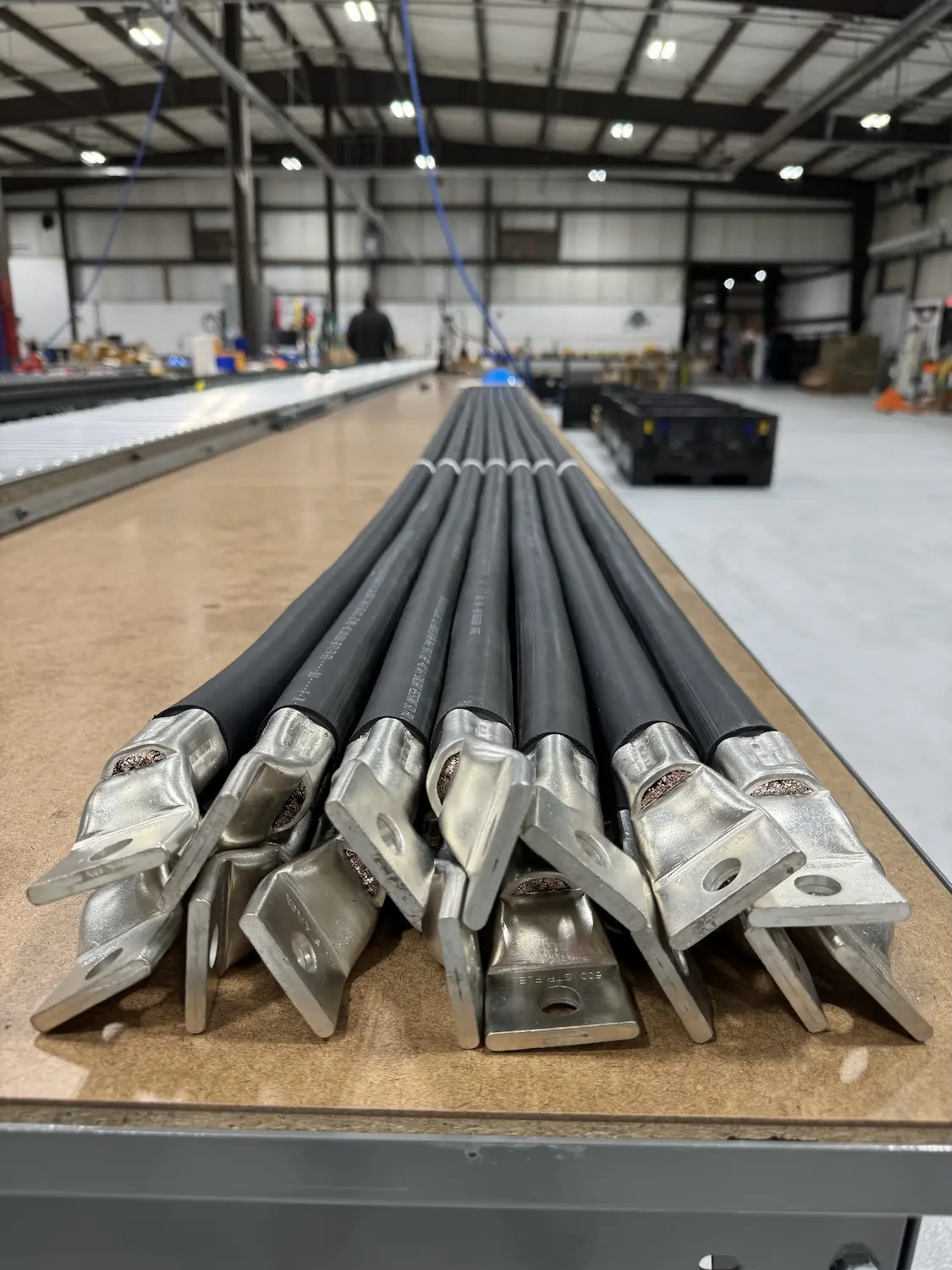

Motor leads and arc welder leads. Quoted by the foot, or built with bolted lugs.
Superflex jumper and SAE J1283 sets. Cold-weather flexibility to −67°F.
Quoted on a reel, or cut and terminated.
Compression lugs and splices run to 1000 MCM. Jumpers check out on the online store.
Frequently asked questions
What is DLO rated for on a locomotive?
2000 volts as UL RHH/RHW-2 and 1000 volts as CSA Type RW90, at -40°F to 194°F (-40°C to 90°C) wet or dry. It is UL Listed per UL 44 under file E18321 and CSA Certified per C22.2 No.38, meets the FT-4 and VW-1 flame tests, is MSHA Accepted under P-136-29, and is cable tray rated at 1/0 and larger.
Do you build locomotive jumper cables?
Booster cables and SAE J1283 jump start cables, both built from Arctic Superflex Blue. Booster cables run 8 AWG through 1/0 in clamp to clamp, clamp to harness and harness to harness configurations, with 1000 amp solid copper clamps. The J1283 sets use a keyed two-pin plug rated 500 amps continuous and 2000 amps intermittent for 30 seconds, and the plug shape eliminates the chance of a cross polarity connection.
Is DLO cable tray rated?
Sizes 1/0 and larger are CT rated. A second line is tray approved too and it is a different product with a different listing: Multi-Listed Flexible Wire is CT approved from 1/0 AWG through 750 MCM and is UL Listed as THHW and MTW under file E321440. Check which one your drawing calls for, because the two are not substitutes for each other.
Request a quote
Send the size, the length, and whether you want it on a reel or cut and terminated.
