Oil, Gas and Arctic
Rated −67°F.
Designed for the North Slope.Rated −67°F. Designed for the North Slope.
Approvals and origin
At a glance
- AUBUltraflex Blue
- −67°F to 221°F
- AUB VUltraflex voltage
- 600 V
- ASFSuperflex
- −67°F to 221°F
- DLODLO
- 2000 V RHH/RHW-2
- SEOOWSEOOW
- −58°F to 221°F
- BuyBuy
- Store or quote
Ultraflex, Superflex, and DLO

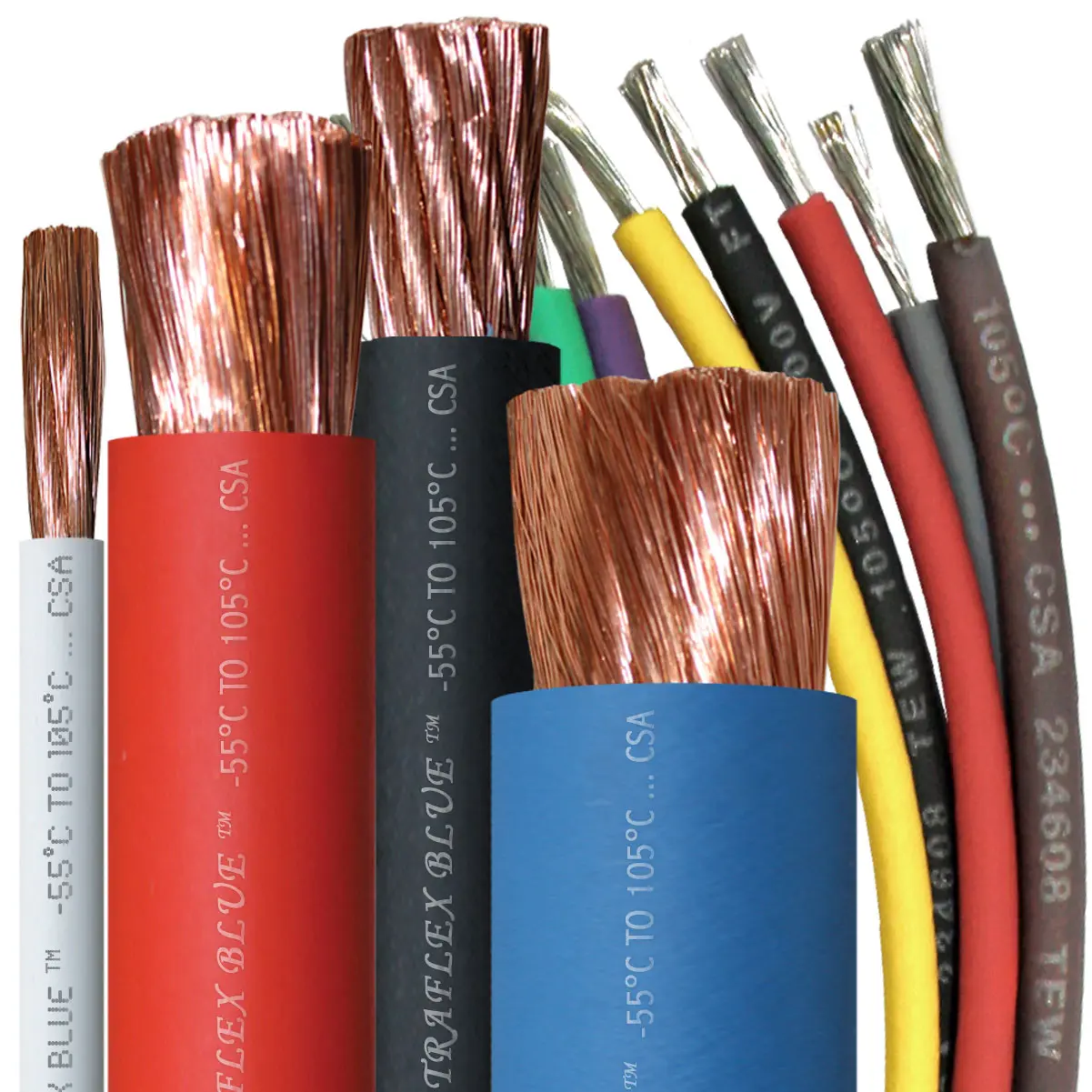

Arctic Ultraflex Blue
Single conductor, 600 V, −67°F to 221°F. 18 AWG to 500 MCM. Class K, 30 AWG strands.
Specifications
Arctic Superflex Blue
Two bonded conductors, 8 AWG to 3/0. −67°F to 221°F. Polarity stripe extruded in.
Specifications
DLO, 2000 V diesel locomotive cable
Listed for oil and gas drilling rigs. 10 AWG to 777.7 MCM. Tinned per AAR 589.
Specifications
Cold, chemistry, and the rig
Arctic Ultraflex Blue, Class K, 18 AWG to 500 MCM. Resists oil, gasoline, salt water, and sunlight.
Superflex, two bonded conductors. Brittle point −67°F, ASTM D-746. Tested on the North Slope.
2000 V DLO, MSHA P-136-29. CPE jacket. Quoted by the foot, or built as a lead.
Blue lines on the online store. DLO quoted.
Arctic Ultraflex Blue and Superflex sell cut and on spools. Rig feeders go to sales.
Frequently asked questions
How cold can Polar Wire wire actually go?
Arctic Ultraflex Blue and Arctic Superflex Blue are both rated to -67°F, which is -55°C. The industrial power cord works from -58°F, which is -50°C. Multi-Listed Flexible Wire is rated from -40°F. Diesel locomotive cable is rated -40°F to 194°F (-40°C to 90°C) wet or dry.
Is it oil resistant?
The TPE insulation on Arctic Ultraflex Blue resists saltwater, oil, gasoline and most acids and chemicals. Arctic Superflex Blue uses insulation that resists oil and gas, acids, chemicals, salt water and sunlight. Diesel locomotive cable puts a heavy duty CPE jacket over EP insulation, which resists oils, acids, alkalies, heat and flame, and is sunlight resistant and flame tested to FT-4 and VW-1.
What do you have for a drilling rig feeder?
Diesel locomotive cable, which is listed for oil and gas drilling rigs. It runs 10 AWG to 777.7 MCM at 2000 volts as UL RHH/RHW-2, on stranded tinned annealed copper per AAR 589, and it is cable tray rated at 1/0 and larger. It is quoted rather than sold through the online store, so send the size, the length and whether you want it on a reel or cut and terminated.
Request a quote
Send the size, the length, and the job. Polar Wire cuts the blue lines, or quotes DLO.
