Solar and Storage Cable
10 AWG PVX in stock.
Superflex for storage.10 AWG PVX in stock. Superflex for storage.
Approvals and origin
At a glance
- PVXPVX stocked
- 10 AWG black, by the foot
- ULPVX listing
- Type PV 600 V, E332768
- TempPVX temperature
- −40°F to 194°F
- BurialDirect burial
- USE-2, 10 AWG black
- LugsTerminations
- 18 AWG to 1000 MCM
- BuyBuy
- Store or quote
PVX, Superflex, and trailer cable
PVX photovoltaic wire
10 AWG black, SKU PVX1019. UL Type PV 600 V, file E332768. USE-2. Direct burial.
Specifications

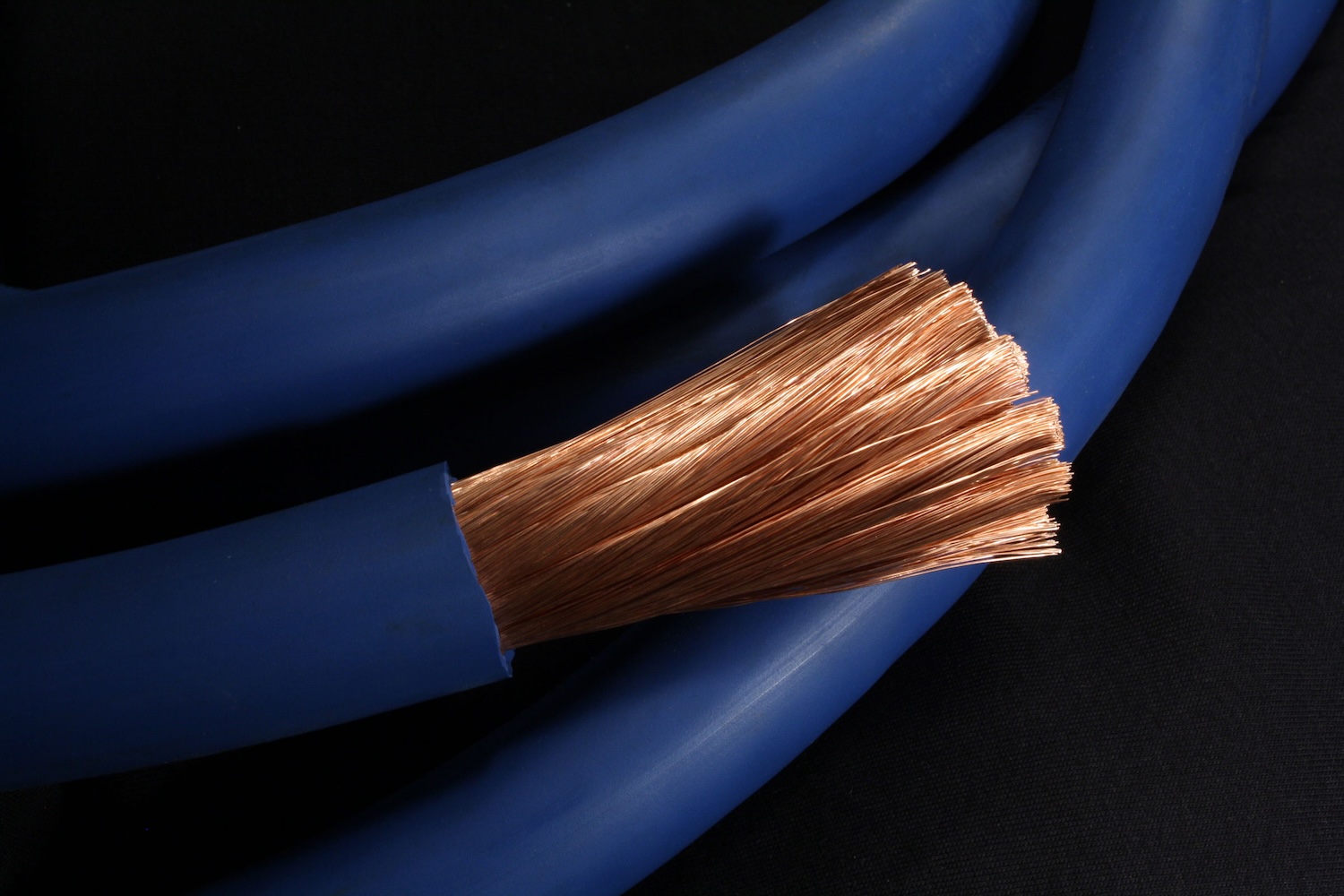

Arctic Superflex Blue
Two bonded conductors, 8 AWG to 3/0. −67°F to 221°F. Listed for wind, solar, and UPS systems.
Specifications

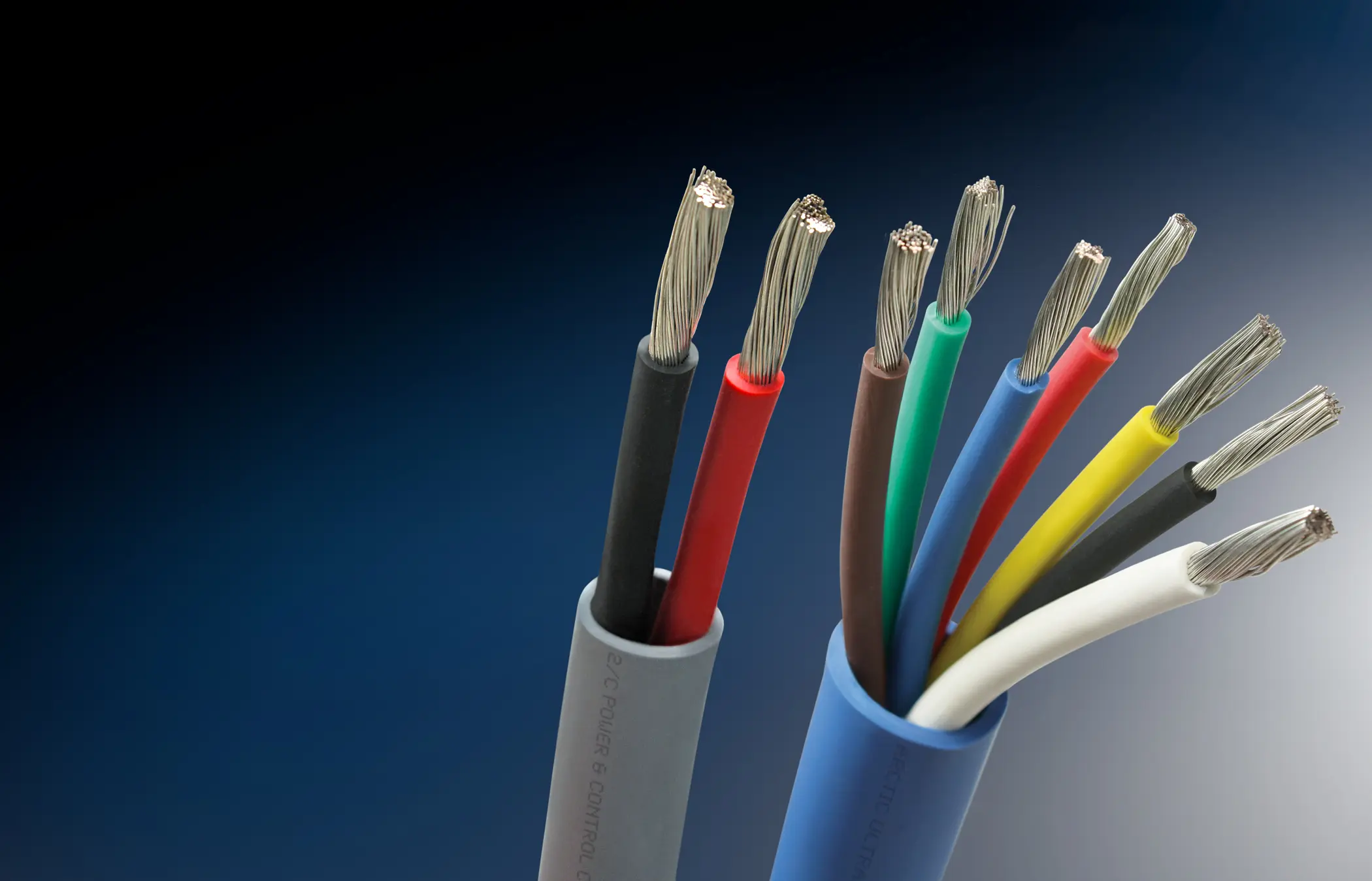

Trailer cable
Listed for solar panel and tracker wiring. Arctic Ultraflex Blue TPE. 600 V.
Specifications
String, storage, and tracker
Single-layer XLPE, 100% copper. VW-1 and FV-2. CSA RPVU90 1000 V on the legend.
Superflex for paired DC. Arctic Ultraflex Blue for single conductor inverter and charger runs.
4 and 7 conductor, 10 to 14 AWG. Tinned Class K. Type TC 600 V sunlight resistant on the legend.
10 AWG black PVX by the foot.
Storage and tracker cables from the stocked lines. Other PV sizes and colors are private label.
Frequently asked questions
Do you make PV wire?
Yes. 10 AWG black PVX is stocked by the foot as PVX1019. Single layer XLPE, 100% copper, rated 194°F (90°C) wet or dry, VW-1 and FV-2, suitable for direct burial. Other gauges and colors are a private label run from 10,000 ft. See photovoltaic wire.
What wire runs a solar tracker?
Trailer cable is the multi-conductor answer, and it is listed for solar panel and tracker wiring and renewable energy projects. It is tinned Class K copper under an Arctic Ultraflex Blue TPE jacket at 600 volts, rated -67°F to 221°F (-55°C to 105°C), in 4 and 7 conductor from 10 to 14 AWG, and its printed jacket legend reads Type TC 600V sunlight resistant.
What do you use for battery storage interconnect?
Arctic Superflex Blue for paired DC runs and Arctic Ultraflex Blue for single conductor. The first is listed for wind and solar power systems and uninterrupted power supply systems, the second for inverter, battery and charger cables. Both are 100% copper on Class K fine stranding. Compression lugs and splices are stocked for conductor up to 1000 MCM, rated for 35 kV applications on copper.
Is there a minimum on a special wire run?
Custom colors, print legends and striping are private label, from 10,000 ft. Eight stocked wire lines are on the online store, including 10 AWG black PVX. Assemblies for retail customers carry no minimum.
Request a quote
Send the size, the length, and the run. Polar Wire stocks 10 AWG PVX, or quotes a private-label size.
