Heavy Equipment Cables
SAE J1283 jump-start.
500 A continuous.SAE J1283 jump-start, 500 A continuous
Approvals and origin
At a glance
- PlugJ1283 rating
- 500 A continuous
- BurstIntermittent
- 2000 A for 30 seconds
- SizesJumper sizes
- 8 AWG through 1/0
- ColdCold flexibility
- −67°F
- WarrantyWarranty
- Limited Lifetime, sealed
- BuyBuy
- Store or quote
Jump-start, boosters, and battery leads
Keyed SAE J1283 plugs for the machine. Superflex clamp sets for the shop. Prebuilt battery cables.

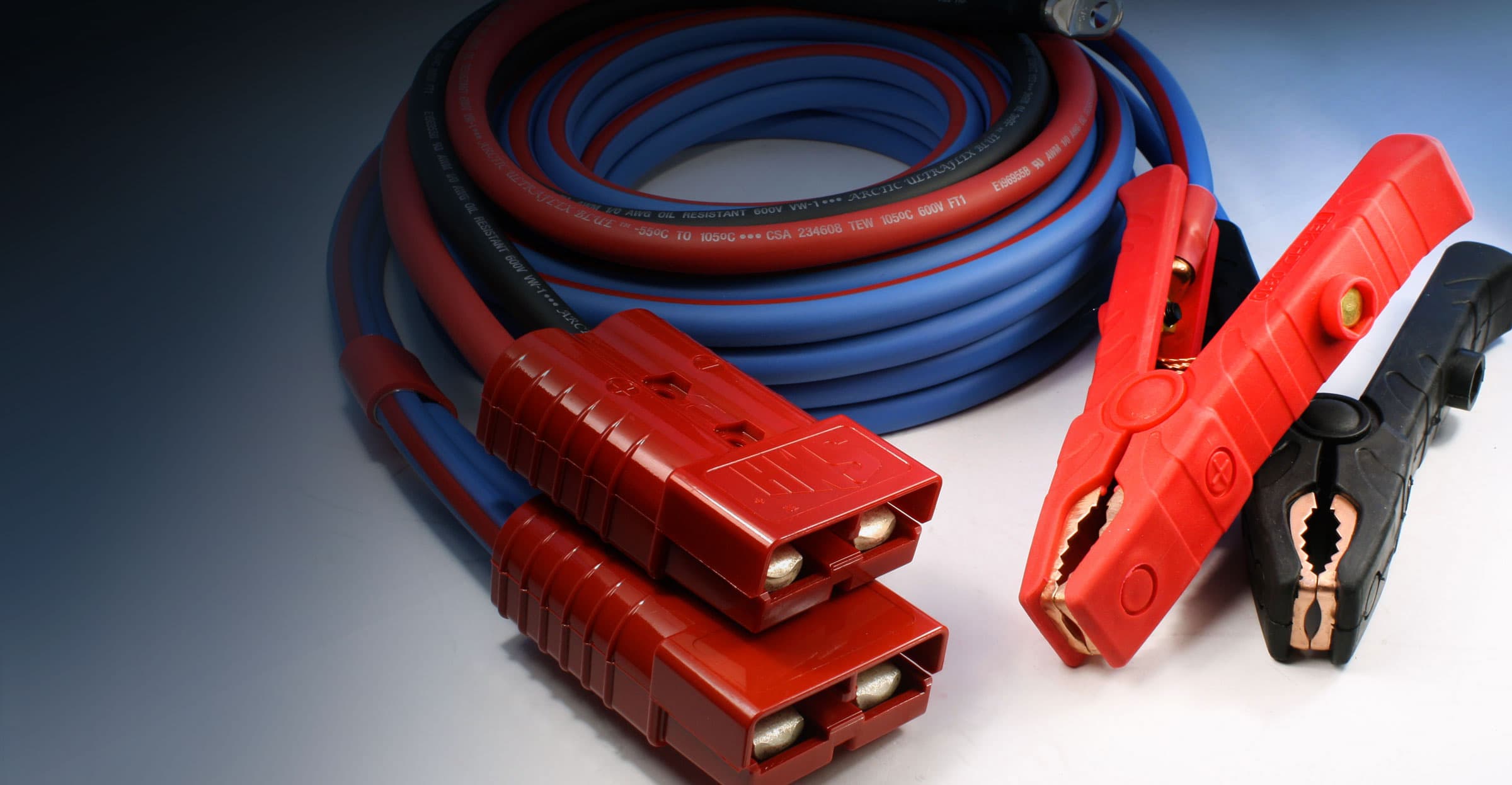

SAE J1283 jump-start cables
500 A continuous, 2000 A intermittent for 30 seconds. Built from Arctic Superflex Blue.
Jump-start cables
Jumper and booster cables
8 AWG through 1/0. 1000 amp solid copper clamps. Polarity stripe extruded in.
Jumper cables

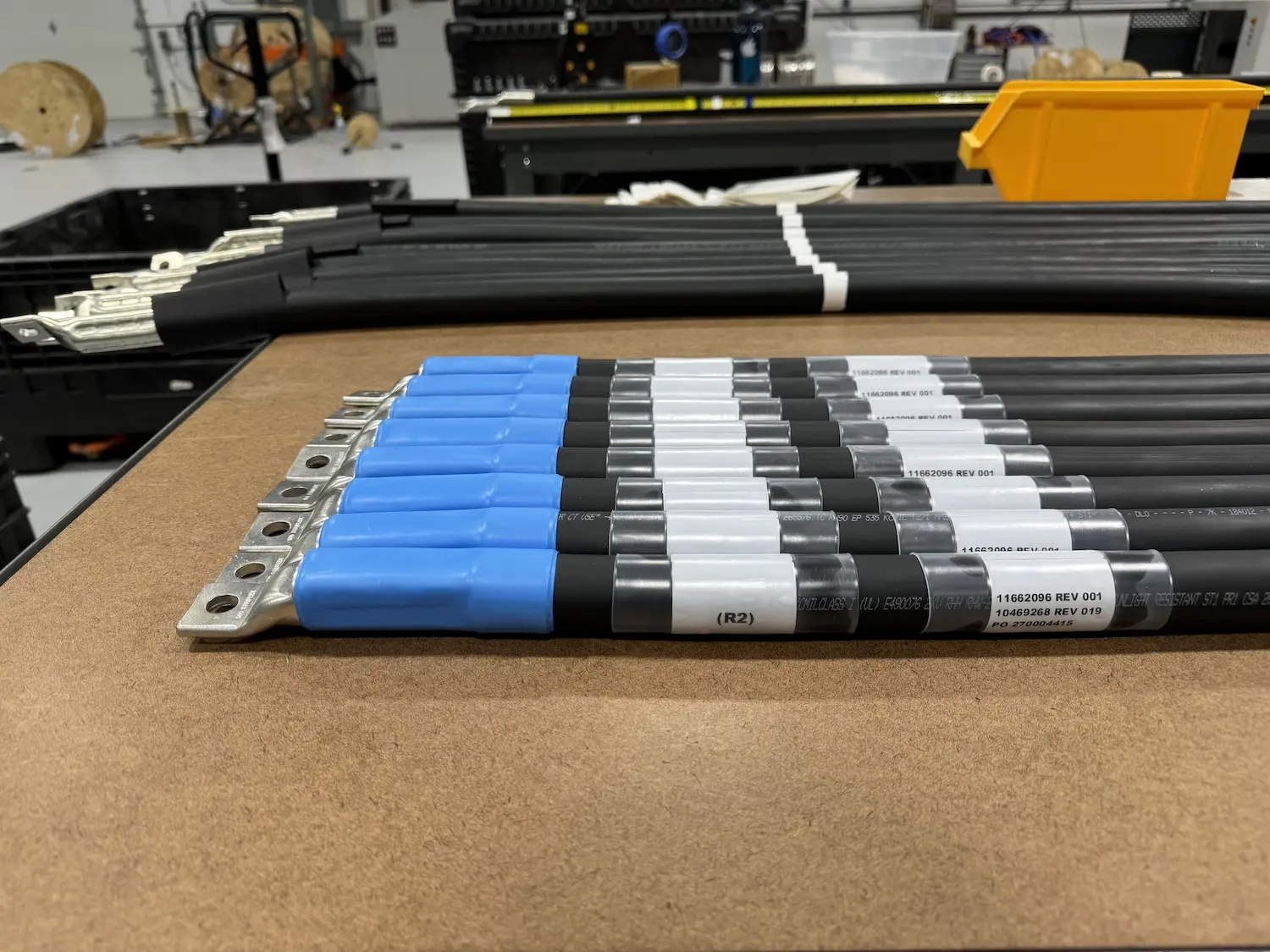

Battery and ground cables
Eye to eye and side-mount, built from Arctic Ultraflex Blue and Superflex.
Prebuilt cables
Plug, clamp, and battery
SAE J1283 plug shape. Compatible with Caterpillar, Komatsu, and CASE style receptacles.
4 AWG and 2 AWG both reach 25 ft clamp to clamp. 2 AWG reaches 30 ft with a harness.
Prebuilt and custom. Compression lugs to 1000 MCM.
One set, or a yard standard.
A set or two checks out on the online store. A length across a fleet goes to sales.
Frequently asked questions
Will an SAE J1283 plug fit our machines?
Polar Wire jump start cables are assembled with field serviceable SAE J1283 connectors compatible with most heavy equipment manufacturers such as Caterpillar, Komatsu and CASE. The plug is keyed, so a cross polarity connection is not possible, and the set screw design allows full field service interchangeability.
What gauge and length should a heavy equipment set be?
Sets run 8 AWG through 1/0. Clamp to clamp, both 4 AWG and 2 AWG reach 25 feet; 2 AWG reaches 30 feet in the build that uses a harness. Gauge is set by the starting current and length by how far apart two machines can actually be parked, and the jumper cable guide works through both against engine size.
Are jump start cables covered by the Limited Lifetime Warranty?
The JSP SAE J1283 jump start cables carry the Limited Lifetime Warranty.
Can a yard standardize on one system?
That is what the modular sets are for. Start with a clamp cable or a connector cable, then swap in harness and clamp adaptor modules to suit each machine. Extra harnesses allow for multiple vehicle or fleet use, and connector cables extend the system as needed, so a yard buys one set of cables and a harness per machine rather than a set per machine.
Request a quote
Send the gauge, the length, and the ends. Polar Wire builds Superflex jump-start and booster sets.
